Other OEL9M0084-G-E idatadata, iinkcukacha, izitokhwe, usetyenziso www.looklcd-xh.com
LookLCD LookLCD

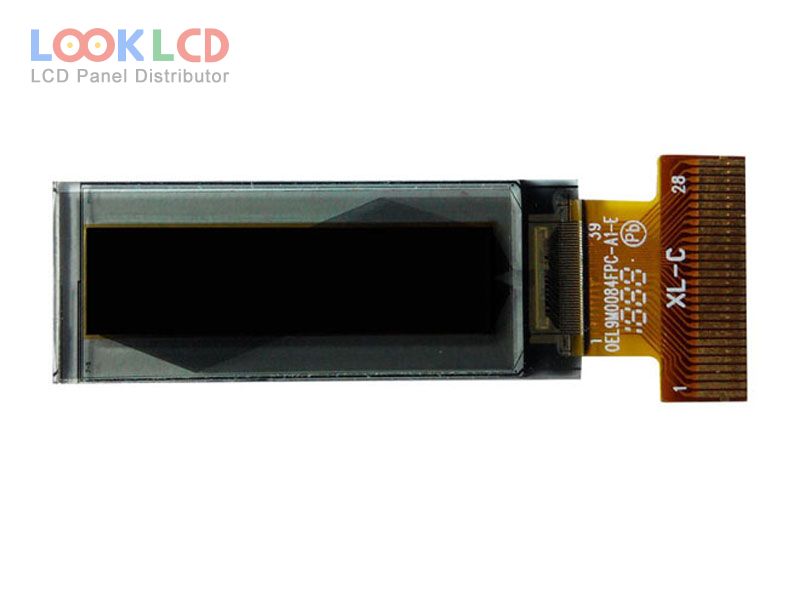

OEL9M0084-G-E

OEL9M0084-G-E
OEL9M0084-G-E thumb
Uphawu
Other
Ubungakanani
0.91
Isicelo
SW
Isigqibo
128×32
Ukuqamba
OLED
Ukuqaqamba
CR
10000:1
Imibala
Mono(Green)
Isibane ngasemva
self
Ujongano
CPU/SPI/I²C
In Stock
7014
Iinkcukacha

Inombolo yendawo OEL9M0084-G-E
UphawuOther
Ubungakanani0.91
IsiceloSW
Isigqibo128×32
UkuqambaOLED
Ukuqaqamba
CR10000:1
ImibalaMono(Green)
Isibane ngasemvaself
UjonganoCPU/SPI/I²C
uphawu lwephaneliTRULY
imodeli yephaneliOEL9M0084-G-E
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli0.91 inch
isisombululo128×32
indawo esebenzayo22.38×5.58 mm
ulwandlalo30×11.5×1.55 mm
umphezulu
ukuqaqamba
umlinganiselo wokuchasana10000 : 1 (Min.)
bonisa imibalaMono(Green) (1-bit)
i-engile yokujonga80/80/80/80 (Min.)(L/R/U/D)
rhoqo100Hz
umqhubi icCOG Built-in SH1103G
ujongano lomqondiso8-bit 6800/8080 parallel, SPI, I²C, 28 pins
igalelo lombane3.0/3.7/10.0V (Typ.)(VDD1/VDD2/VPP)
rohs:
isiceloSW
