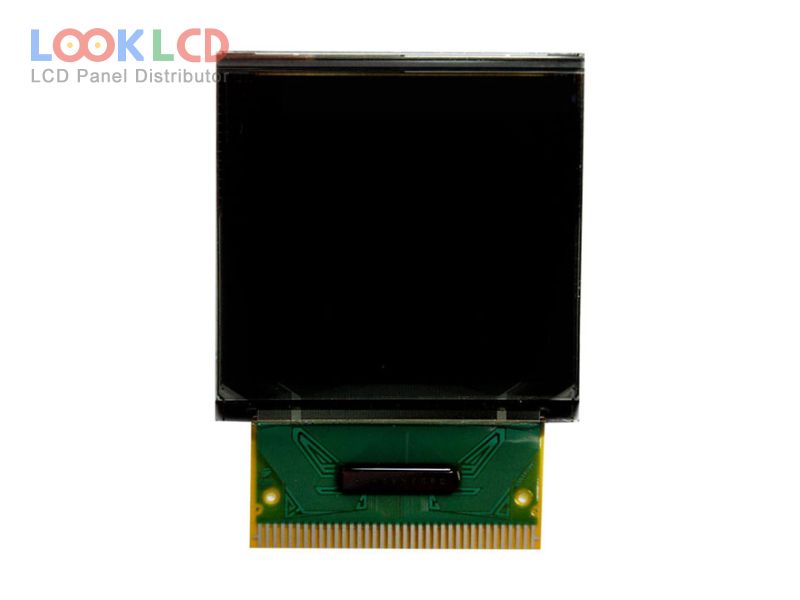

OEL9M1004-L4-E

OEL9M1004-L4-E
OEL9M1004-L4-E thumb
Uphawu
Other
Ubungakanani
1.5
Isicelo
SW
Isigqibo
128×128
Ukuqamba
OLED
Ukuqaqamba
80
CR
5000:1
Imibala
262K
Isibane ngasemva
self
Ujongano
CPU/SPI
In Stock
2176
Iinkcukacha

Inombolo yendawo OEL9M1004-L4-E
UphawuOther
Ubungakanani1.5
IsiceloSW
Isigqibo128×128
UkuqambaOLED
Ukuqaqamba80
CR5000:1
Imibala262K
Isibane ngasemvaself
UjonganoCPU/SPI
uphawu lwephaneliTRULY
imodeli yephaneliOEL9M1004-L4-E
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli1.5 inch
isisombululo128(RGB)×128
indawo esebenzayo27.23×27.23 mm
ulwandlalo35.5×34.6×1.55 mm
umphezulu
ukuqaqamba80 cd/m² (Typ.)
umlinganiselo wokuchasana5000 : 1 (Min.)
bonisa imibala262K (6-bit), CIE193160%
i-engile yokujonga85/85/85/85 (Min.)(L/R/U/D)
rhoqo100Hz
umqhubi icCOF Built-in SSD1355U8R1
ujongano lomqondiso8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins
isiceloSW
Umzekelo woSapho
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-G-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-G-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
