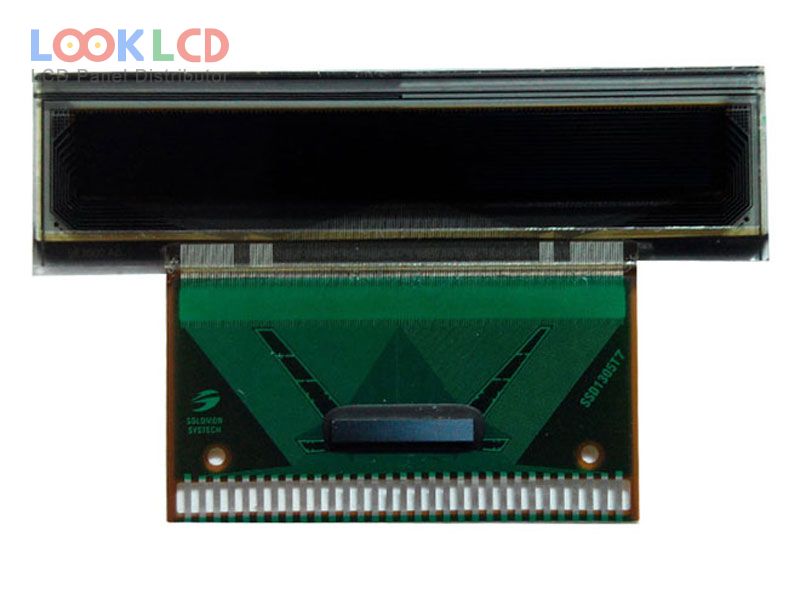

OEL9M0078-Y-E

OEL9M0078-Y-E
OEL9M0078-Y-E thumb
Uphawu
Other
Ubungakanani
1.45
Isicelo
IA
Isigqibo
132×16
Ukuqamba
OLED
Ukuqaqamba
100
CR
10000:1
Imibala
Mono(Yellow)
Isibane ngasemva
self
Ujongano
CPU/SPI/I²C
In Stock
14868
Iinkcukacha

Inombolo yendawo OEL9M0078-Y-E
UphawuOther
Ubungakanani1.45
IsiceloIA
Isigqibo132×16
UkuqambaOLED
Ukuqaqamba100
CR10000:1
ImibalaMono(Yellow)
Isibane ngasemvaself
UjonganoCPU/SPI/I²C
uphawu lwephaneliTRULY
imodeli yephaneliOEL9M0078-Y-E
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli1.45 inch
isisombululo132×16
indawo esebenzayo36.412×4.62 mm
ulwandlalo43.06×11.75×1.6 mm
umphezulu
ukuqaqamba100 cd/m² (Typ.)
umlinganiselo wokuchasana10000 : 1 (Min.)
bonisa imibalaMono(Yellow) (1-bit)
i-engile yokujonga80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
umqhubi icTAB Built-in SSD1305T7R1
ujongano lomqondiso8-bit 6800/8080 parallel, SPI, I²C, 31 pins
igalelo lombane3.0/11.0V (Typ.)(VDD/VCC)
isiceloIA
