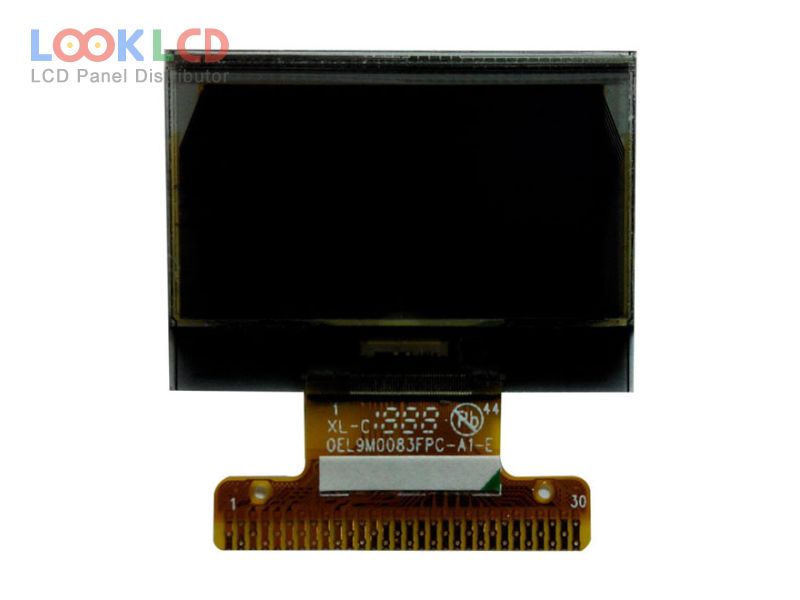

OEL9M0083-G-E

OEL9M0083-G-E
OEL9M0083-G-E thumb
Uphawu
Other
Ubungakanani
0.96
Isicelo
Isigqibo
128×64
Ukuqamba
OLED
Ukuqaqamba
CR
10000:1
Imibala
Mono(Green)
Isibane ngasemva
self
Ujongano
CPU/SPI/I²C
In Stock
13185
Iinkcukacha

Inombolo yendawo OEL9M0083-G-E
UphawuOther
Ubungakanani0.96
Isicelo
Isigqibo128×64
UkuqambaOLED
Ukuqaqamba
CR10000:1
ImibalaMono(Green)
Isibane ngasemvaself
UjonganoCPU/SPI/I²C
uphawu lwephaneliTRULY
imodeli yephaneliOEL9M0083-G-E
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli0.96 inch
isisombululo128×64
indawo esebenzayo21.74×11.175 mm
ulwandlalo26.7×19.26×1.65 mm
umphezulu
ukuqaqamba
umlinganiselo wokuchasana10000 : 1 (Min.)
bonisa imibalaMono(Green) (1-bit)
i-engile yokujonga80/80/80/80 (Min.)(L/R/U/D)
rhoqo100Hz
umqhubi icCOG Built-in SH1106G
ujongano lomqondiso8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
