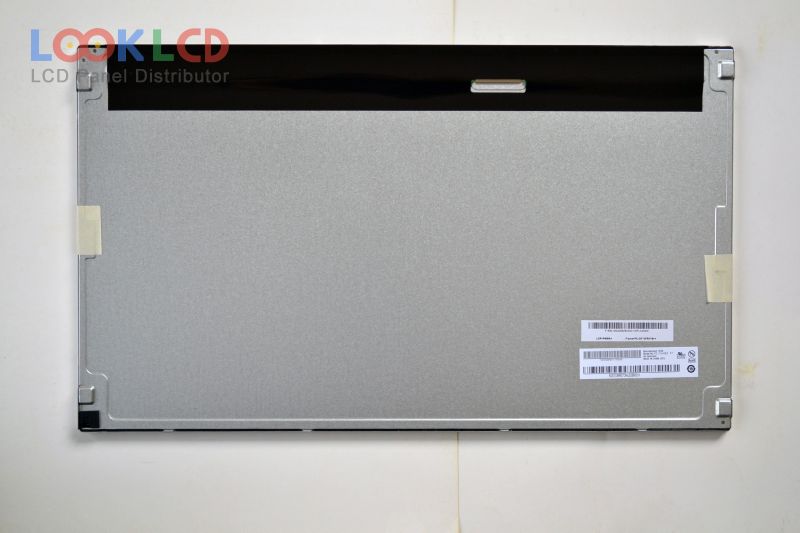

M215HW03 V1

M215HW03 V1
M215HW03 V1
M215HW03 V1 thumb M215HW03 V1 thumb
Uphawu
AUO
Ubungakanani
21.5
Isicelo
DMPC
Isigqibo
1920×1080
Ukuqamba
LCM
Ukuqaqamba
250
CR
1000:1
Imibala
16.7M
Isibane ngasemva
WLED
Ujongano
LVDS
In Stock
158
Iinkcukacha

Inombolo yendawo M215HW03 V1
UphawuAUO
Ubungakanani21.5
IsiceloDMPC
Isigqibo1920×1080
UkuqambaLCM
Ukuqaqamba250
CR1000:1
Imibala16.7M
Isibane ngasemvaWLED
UjonganoLVDS
uphawu lwephaneliAUO
imodeli yephaneliM215HW03 V1
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli21.5 inch
isisombululo1920(RGB)×1080 , FHD
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo476.64×268.11 mm
ulwandlalo495.6×292.2×11 mm
umphezuluAntiglare, Hard coating (3H)
ukuqaqamba250 cd/m² (Typ.)
umlinganiselo wokuchasana1000:1 (Typ.)
bonisa imibala16.7M (6-bit + Hi-FRC), CIE193172%
ixesha lokuphendula3.8/1.2 (Typ.)(Tr/Td)
i-engile yokujonga85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane16S4PWLEDWithout Driver
ujongano lomqondisoLVDS (2 ch, 8-bit), 30 pins
igalelo lombane5.0V (Typ.)
isiceloDMPC
