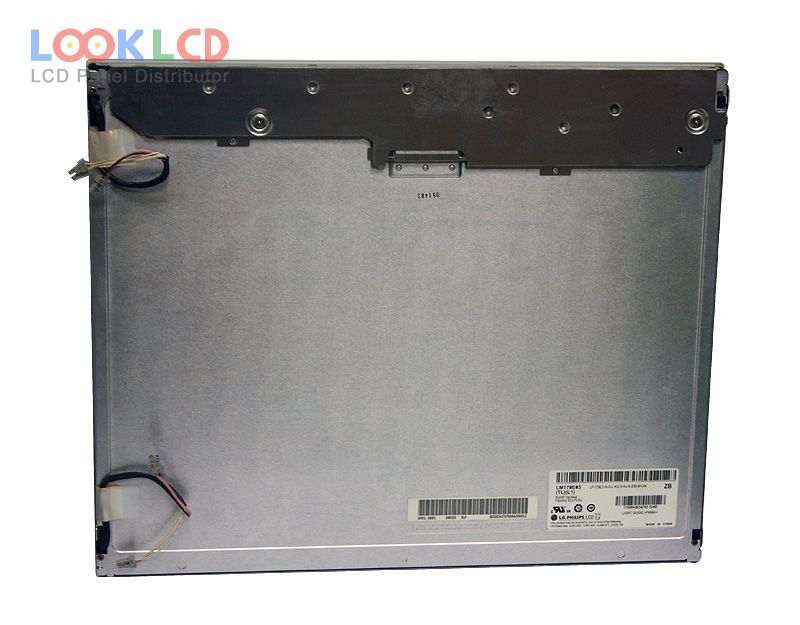

LM170E03-TLB1

LM170E03-TLB1
LM170E03-TLB1 thumb
Uphawu
LG Display
Ubungakanani
17.0
Isicelo
DMPC
Isigqibo
1280×1024
Ukuqamba
LCM
Ukuqaqamba
300
CR
800:1
Imibala
16.7M
Isibane ngasemva
CCFL
Ujongano
LVDS
In Stock
9
Iinkcukacha

Inombolo yendawo LM170E03-TLB1
UphawuLG Display
Ubungakanani17.0
IsiceloDMPC
Isigqibo1280×1024
UkuqambaLCM
Ukuqaqamba300
CR800:1
Imibala16.7M
Isibane ngasemvaCCFL
UjonganoLVDS
uphawu lwephaneliLG.Philips LCD
imodeli yephaneliLM170E03-TLB1 2 Compatible model
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli17.0 inch
isisombululo1280(RGB)×1024 , SXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo337.92×270.336 mm
ulwandlalo358.5×296.5×17.5 mm
umphezuluAntiglare, Hard coating (3H)
ukuqaqamba300 cd/m² (Typ.)
umlinganiselo wokuchasana800:1 (Typ.)
bonisa imibala16.7M (6-bit + Hi-FRC)
ixesha lokuphendula1.3/3.7 (Typ.)(Tr/Td)
i-engile yokujonga80/80/75/85 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane4 pcsCCFLWithout Driver
ujongano lomqondisoLVDS (2 ch, 8-bit), 30 pins
igalelo lombane5.0V (Typ.)
isiceloDMPC
Umzekelo woSapho
LM170E01-A4 LG Display 17.0 1280×1024
LM170E01-A6 LG Display 17.0 1280×1024
LM170E01-TLA1 LG Display 17.0 1280×1024
LM170E01-TLB3 LG Display 17.0 1280×1024
LM170E01-TLBF LG Display 17.0 1280×1024
LM170E03-TLB1 LG Display 17.0 1280×1024
LM170E03-TLG1 LG Display 17.0 1280×1024
LM170E03-TLJ2 LG Display 17.0 1280×1024
LM170E03-TLL1 LG Display 17.0 1280×1024
LM170E03-TLL2 LG Display 17.0 1280×1024
