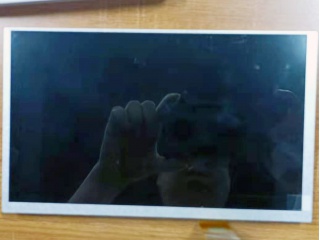

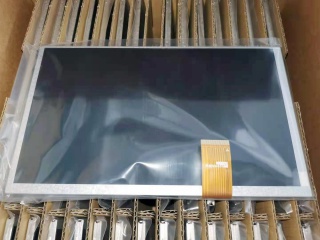

| Inombolo yendawo | HSD090JFW1-A02 |
| Uphawu | HannStar |
| Ubungakanani | 9.0 |
| Isicelo | Automotive Display |
| Isigqibo | 1024×600 |
| Ukuqamba | LCM, a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 800:1 |
| Imibala | 16.2M |
| Isibane ngasemva | 3S13P |
| Ujongano | LVDS |
| umenzi | HannStar |
| igama lemodeli | HSD090JFW1-A02 |
| ubungakanani besikrini | 9.0 inch |
| uhlobo lwesikrini | LCM, a-Si TFT-LCD |
| inombolo pixel | 1024(RGB)×600 (WSVGA) 132PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 196.608 × 114.15 (H×V) |
| Ulwandlalo(mm) | 211.1 × 126.5 × 6 (H×V×D) |
| indawo ye-bezel(mm) | 200.01 × 117.55 (H×V) |
| unyango | Antiglare, Hard coating (3H) |
| ukukhanya | 500 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 800 : 1 (Typ.) (TM) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| impendulo | 17/18 (Typ.)(Tr/Td) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | IPS Pro, Normally Black, Transmissive |
| ubunzulu bombala | 16.2M 50% NTSC |
| isibane esingasemva | 3S13P WLED , 15K hours , No Driver |
| ubunzima | 226g (Typ.) |
| esetyenziselwa | Automotive Display |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| uhlobo lomqondiso | LVDS (1 ch, 8-bit) , FPC 40 pins |
| unikezelo lombane | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. amanqaku | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
