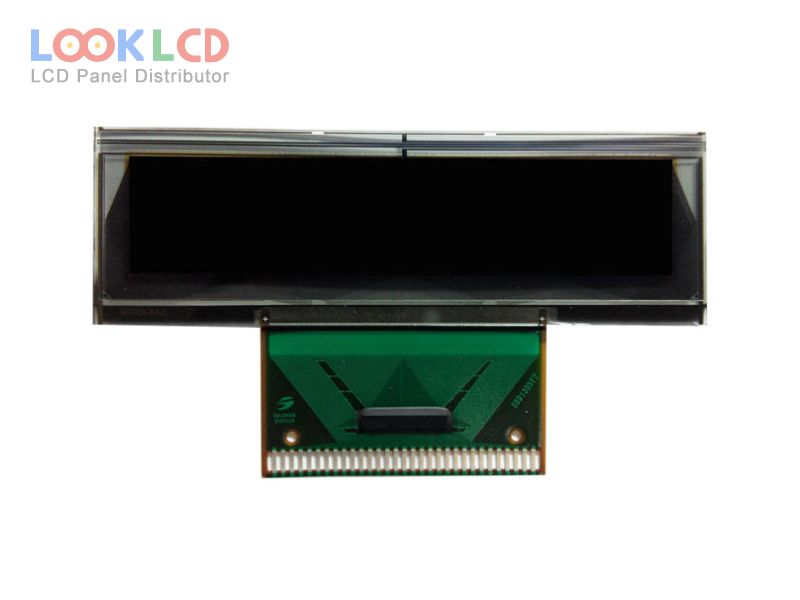

OEL9M0064-Y-E

OEL9M0064-Y-E
OEL9M0064-Y-E thumb
Uphawu
Other
Ubungakanani
2.0
Isicelo
IA
Isigqibo
128×32
Ukuqamba
OLED
Ukuqaqamba
80
CR
10000:1
Imibala
Mono(Yellow)
Isibane ngasemva
self
Ujongano
CPU/SPI/I²C
In Stock
5225
Iinkcukacha

Inombolo yendawo OEL9M0064-Y-E
UphawuOther
Ubungakanani2.0
IsiceloIA
Isigqibo128×32
UkuqambaOLED
Ukuqaqamba80
CR10000:1
ImibalaMono(Yellow)
Isibane ngasemvaself
UjonganoCPU/SPI/I²C
uphawu lwephaneliTRULY
imodeli yephaneliOEL9M0064-Y-E
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli2.0 inch
isisombululo128×32
indawo esebenzayo50.535×10.695 mm
ulwandlalo59×18.86×1.6 mm
umphezulu
ukuqaqamba80 cd/m² (Typ.)
umlinganiselo wokuchasana10000 : 1 (Min.)
bonisa imibalaMono(Yellow) (1-bit)
i-engile yokujonga80/80/80/80 (Min.)(L/R/U/D)
rhoqo100Hz
umqhubi icTAB Built-in SSD1305T7R1
ujongano lomqondiso8-bit 6800/8080 parallel, SPI, I²C, 31 pins
igalelo lombane3.0/12.0V (Typ.)(VDD/VCC)
isiceloIA
