Inombolo yendawo | N156BGE-L11 |
Uphawu | Innolux |
Ubungakanani | 15.6 |
Isicelo | NBPC |
Isigqibo | 1366×768 |
Ukuqamba | LCM |
Ukuqaqamba | 220 |
CR | 500:1 |
Imibala | 262K |
Isibane ngasemva | WLED |
Ujongano | LVDS |

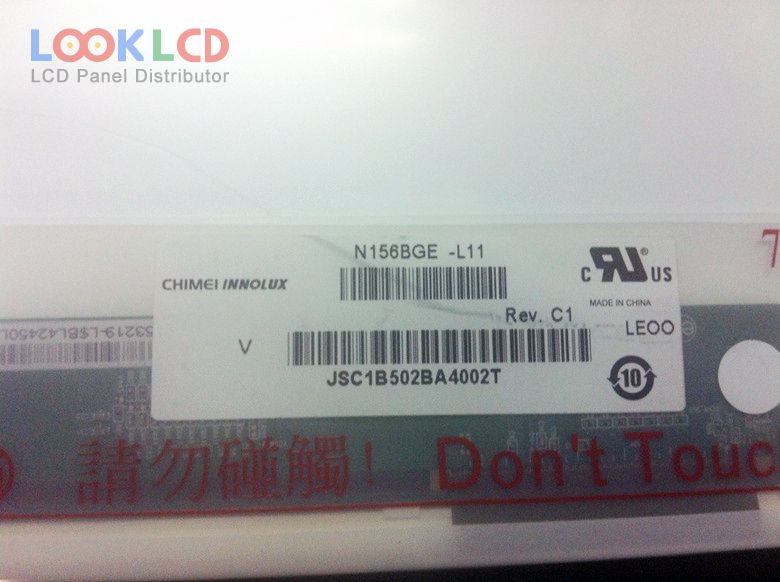

uphawu lwephaneli | CHIMEI INNOLUX |

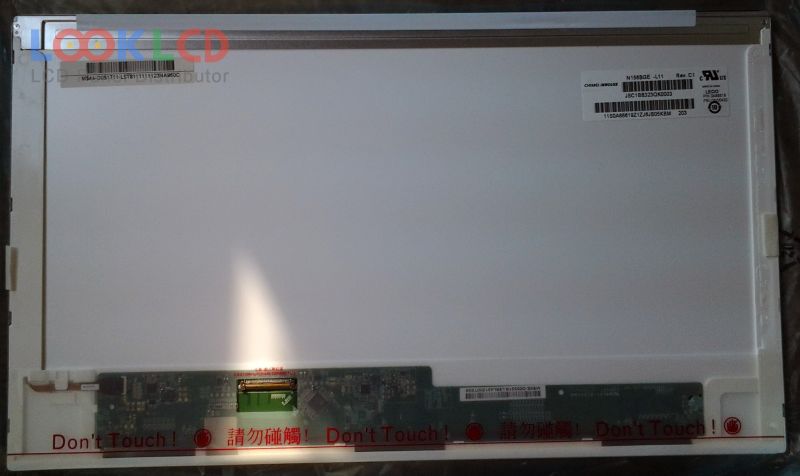

imodeli yephaneli | N156BGE-L11 61 Compatible model |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 15.6 inch |
isisombululo | 1366(RGB)×768 , WXGA |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 344.232×193.536 mm |
ulwandlalo | 359.3×209.5×5.5 mm |
isitayile semilo | Wedge (PCBA Bent, Depth ≥5.2mm) |
umphezulu | Antiglare, Hard coating (3H) |
ukuqaqamba | 220 cd/m² (Typ.) |
umlinganiselo wokuchasana | 500:1 (Typ.) |
bonisa imibala | 262K (6-bit), CIE193160% |
ixesha lokuphendula | 3/8 (Typ.)(Tr/Td) |
i-engile yokujonga | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | WLEDEmbedded (LED Driver) |
ujongano lomqondiso | LVDS (1 ch, 6-bit), 40 pins |
igalelo lombane | 3.3V (Typ.) |
isicelo | NBPC |
