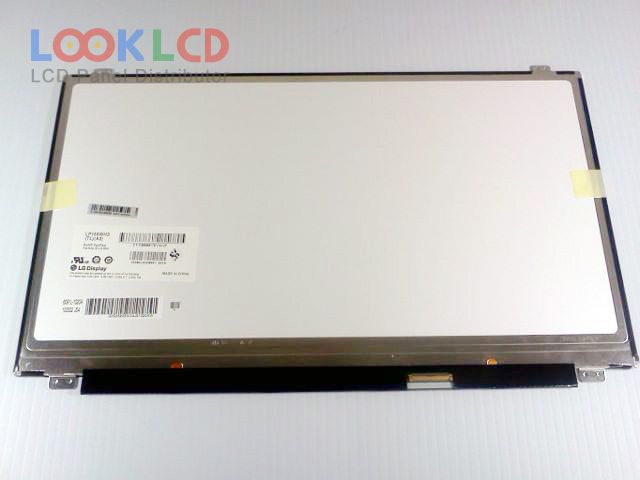

LP156WH3-TLE1

LP156WH3-TLE1
LP156WH3-TLE1 thumb
Uphawu
LG Display
Ubungakanani
15.6
Isicelo
NBPC
Isigqibo
1366×768
Ukuqamba
LCM
Ukuqaqamba
200
CR
500:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
LVDS
In Stock
100
Iinkcukacha

Inombolo yendawo LP156WH3-TLE1
UphawuLG Display
Ubungakanani15.6
IsiceloNBPC
Isigqibo1366×768
UkuqambaLCM
Ukuqaqamba200
CR500:1
Imibala262K
Isibane ngasemvaWLED
UjonganoLVDS
uphawu lwephaneliLG Display
imodeli yephaneliLP156WH3-TLE1 21 Compatible model
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli15.6 inch
isisombululo1366(RGB)×768 , WXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo344.232×193.536 mm
ulwandlalo359.5×223.4×3.8 mm
isitayile semiloFlat (PCBA Flat, Depth 3.4~4.0mm)
umphezuluGlare (Haze 0%), Hard coating (3H)
ukuqaqamba200 cd/m² (Typ.)
umlinganiselo wokuchasana500:1 (Typ.)
bonisa imibala262K (6-bit), CIE193145%
ixesha lokuphendula16 (Typ.)(Tr+Td)
i-engile yokujonga40/40/10/30 (Min.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibaneWLEDEmbedded (LED Driver)
ujongano lomqondisoLVDS (1 ch, 6-bit), 40 pins
igalelo lombane3.3V (Typ.)
isiceloNBPC
