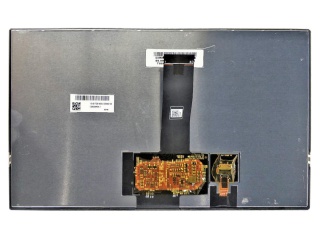

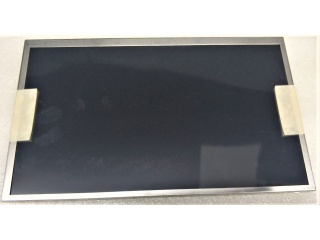

| Inombolo yendawo | C090EAN04.1 |
| Uphawu | AUO |
| Ubungakanani | 9.0 |
| Isicelo | Outdoor High Brightn |
| Isigqibo | 1280×720 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | WLED |
| Ujongano | LVDS |
| uphawu | AUO |
| imodeli | C090EAN04.1 |
| ubungakanani bediagonal | 9.0 inch |
| uhlobo | a-Si TFT-LCD, LCM |
| ifomathi ye-pixel | 1280(RGB)×720 [WXGA] 163PPI |
| uqwalaselo | RGB Vertical Stripe |
| indawo esebenzayo | 198.72(H)×111.78(V) mm |
| ulwandlalo mfiliba. | 212.2(H)×127.9(V) ×11(D) mm |
| indawo ye-bezel | 202.02(H)×115.78(V) mm |
| unyango | Antiglare |
| ukukhanya | 900 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000:1 (Typ.) (TM) |
| Jonga indlela | Symmetry |
| ixesha lokuphendula | 30 (Typ.)(Tr+Td) |
| i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10) |
| indlela yokusebenza | AHVA, Normally Black, Transmissive |
| umbala inkxaso | 16.7M 72% NTSC |
| umthombo wokukhanya | WLED [8S3P] , 10K hours , W/O Driver |
| ubunzima | TBD |
| yenzelwe | Outdoor High Brightness Automotive Display |
| umgangatho wefreyimu | 60Hz |
| indawo yokuthintela | Without |
| uhlobo lojongano | LVDS (1 ch, 8-bit) , 40 pins FPC |
| ukunikezwa Amandla | 3.3V (Typ.) |
| okusingqongileyo | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
