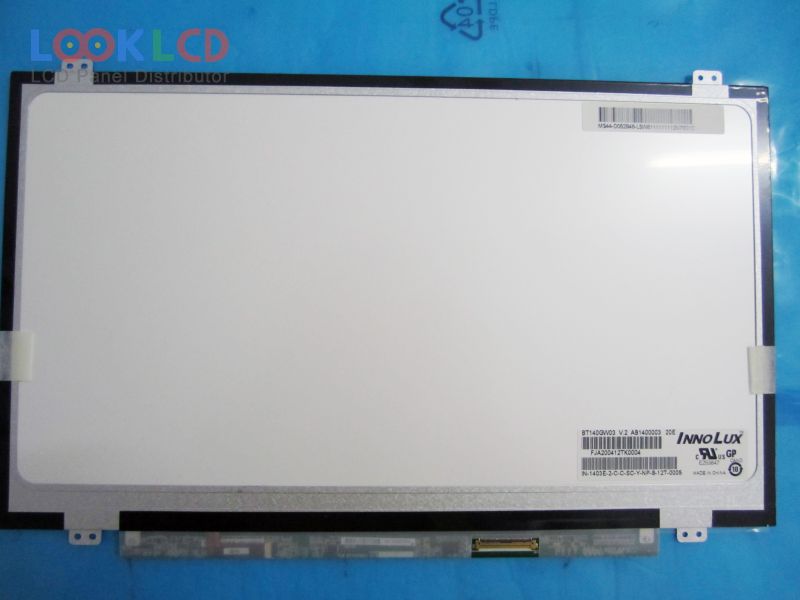

BT140GW03 V.2

BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2 thumb BT140GW03 V.2 thumb BT140GW03 V.2 thumb
Uphawu
Innolux
Ubungakanani
14.0
Isicelo
NBPC
Isigqibo
1366×768
Ukuqamba
LCM
Ukuqaqamba
200
CR
600:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
LVDS
In Stock
1729
Iinkcukacha

Inombolo yendawo BT140GW03 V.2
UphawuInnolux
Ubungakanani14.0
IsiceloNBPC
Isigqibo1366×768
UkuqambaLCM
Ukuqaqamba200
CR600:1
Imibala262K
Isibane ngasemvaWLED
UjonganoLVDS
uphawu lwephaneliCHIMEI INNOLUX
imodeli yephaneliBT140GW03 V.2 6 Compatible model
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli14.0 inch
isisombululo1366(RGB)×768 , WXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo309.399×173.952 mm
ulwandlalo320.4×205.1×3.6 mm
isitayile semiloFlat (PCBA Flat, Depth 3.4~4.0mm)
umphezuluGlare (Haze 0%), Hard coating (3H)
ukuqaqamba200 cd/m² (Typ.)
umlinganiselo wokuchasana600:1 (Typ.)
bonisa imibala262K (6-bit), CIE193145%
ixesha lokuphendula8 (Typ.)(Tr+Td)
i-engile yokujonga45/45/15/30 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane9S4PWLEDEmbedded (LED Driver)

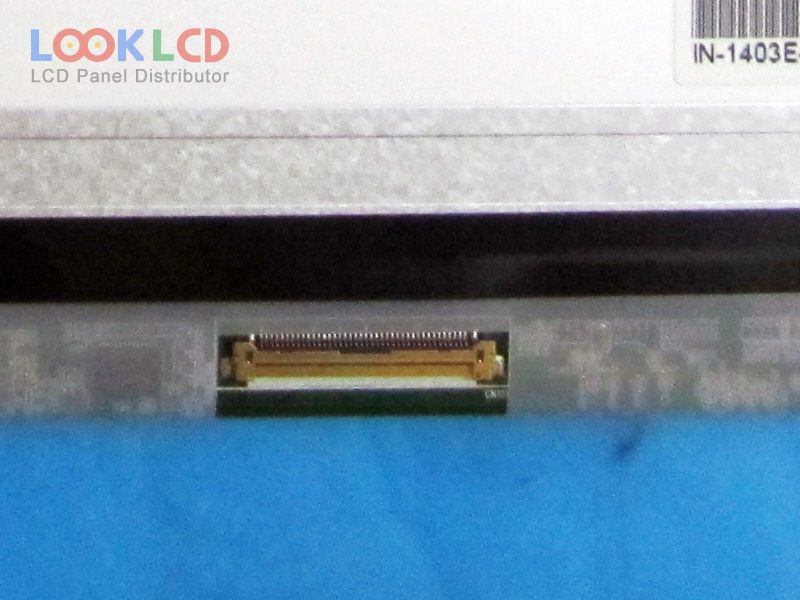

ujongano lomqondisoLVDS (1 ch, 6-bit), 40 pins
igalelo lombane3.3V (Typ.)
isiceloNBPC
