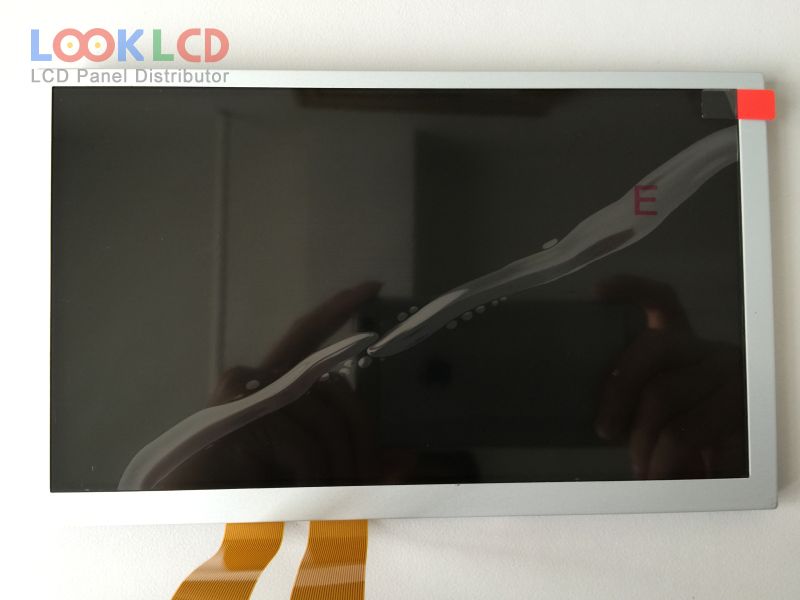

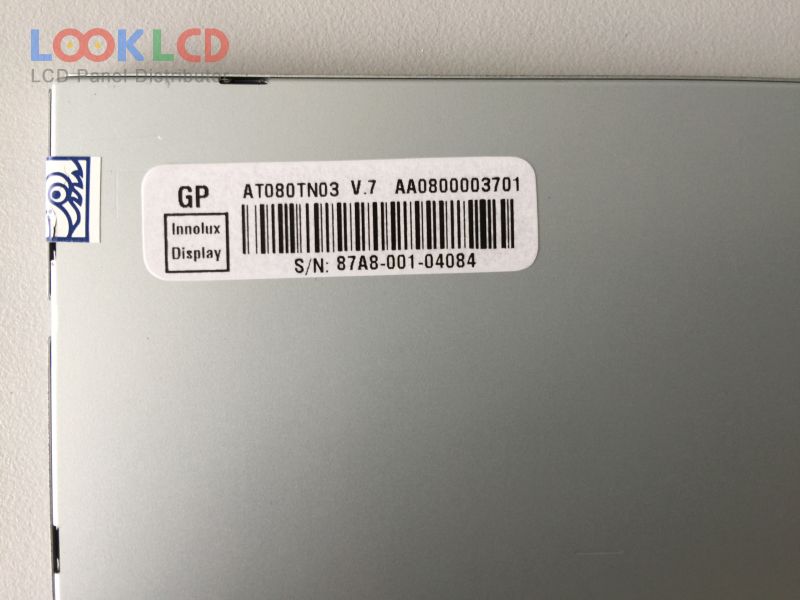

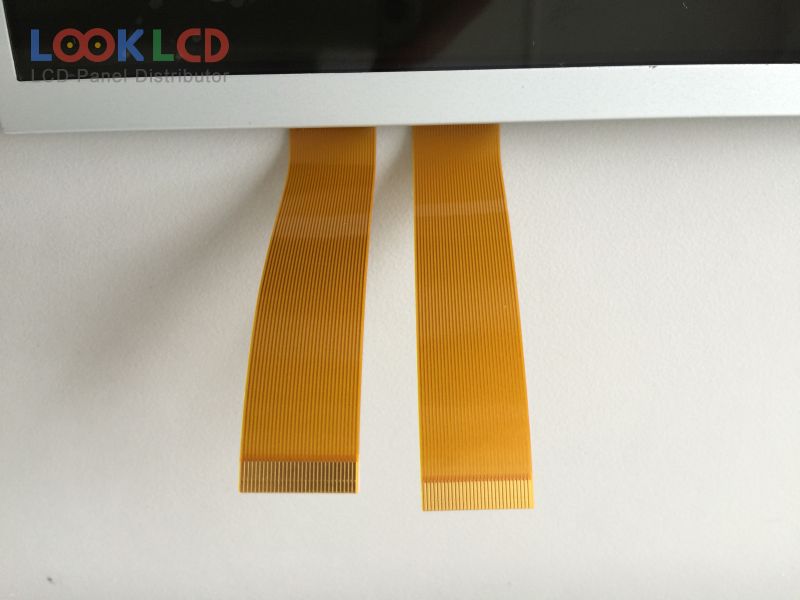

AT080TN03 V.7

AT080TN03 V.7
AT080TN03 V.7
AT080TN03 V.7
AT080TN03 V.7 thumb AT080TN03 V.7 thumb AT080TN03 V.7 thumb
Uphawu
Innolux
Ubungakanani
8.0
Isicelo
DPF
Isigqibo
800×480
Ukuqamba
LCM
Ukuqaqamba
300
CR
300:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
TTL
In Stock
9409
Iinkcukacha

Inombolo yendawo AT080TN03 V.7
UphawuInnolux
Ubungakanani8.0
IsiceloDPF
Isigqibo800×480
UkuqambaLCM
Ukuqaqamba300
CR300:1
Imibala262K
Isibane ngasemvaWLED
UjonganoTTL
uphawu lwephaneliINNOLUX
imodeli yephaneliAT080TN03 V.7
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli8.0 inch
isisombululo800(RGB)×480 , WVGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo176.64×99.36 mm
ulwandlalo192.8×116.9×6.7 mm
umphezuluAntiglare
ukuqaqamba300 cd/m² (Typ.)
umlinganiselo wokuchasana300:1 (Typ.)
bonisa imibala262K (6-bit)
ixesha lokuphendula15/20 (Typ.)(Tr/Td)
i-engile yokujonga65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane3S9PWLEDWithout Driver
ujongano lomqondisoParallel RGB (1 ch, 6-bit), 60 pins
igalelo lombane3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
isiceloDPF
Umzekelo woSapho
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
