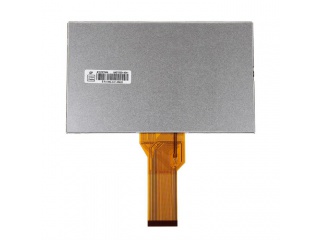

| Inombolo yendawo | AT070TN04 |
| Uphawu | Innolux |
| Ubungakanani | 7.0 |
| Isicelo | Automotive Display |
| Isigqibo | 480×234 |
| Ukuqamba | a-Si TFT-LCD , LCM |
| Ukuqaqamba | |
| CR | 300:1 |
| Imibala | Full |
| Isibane ngasemva | CCFL |
| Ujongano | TFT |
| uphawu | Innolux |
| ubungakanani bediagonal | 7.0 inch |
| ifomathi ye-pixel | 480(RGB)×234 76PPI |
| indawo esebenzayo | 154.08(H)×86.58(V) mm |
| indawo ye-bezel | - |
| ukukhanya | 500 cd/m² (Typ.) |
| Jonga indlela | 6 o'clock |
| i-engile yokujonga | 60/60/40/60 (Typ.)(CR≥10) |
| umbala inkxaso | Full color |
| ubunzima | 160g (Typ.) |
| umgangatho wefreyimu | 60Hz |
| uhlobo lojongano | TFT Specific Analog RGB , 26 pins FPC |
| ukunikezwa Amandla | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| okusingqongileyo | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| imodeli | AT070TN04 |
| uhlobo | a-Si TFT-LCD , LCM |
| uqwalaselo | RGB Vertical Stripe |
| ulwandlalo mfiliba. | 164.9(H)×100(V) ×6(D) mm |
| unyango | Antiglare |
| umlinganiselo wokuchasana | 300:1 (Typ.) (TM) |
| ixesha lokuphendula | 10/20 (Typ.)(Tr/Td) |
| indlela yokusebenza | TN, Normally White, Transmissive |
| umthombo wokukhanya | CCFL [1 pcs] , 10K hours , W/O Driver |
| yenzelwe | Automotive Display |
| indawo yokuthintela | Without |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
