Innolux AT050TN23 V.1 idatadata, iinkcukacha, izitokhwe, usetyenziso www.looklcd-xh.com
LookLCD LookLCD

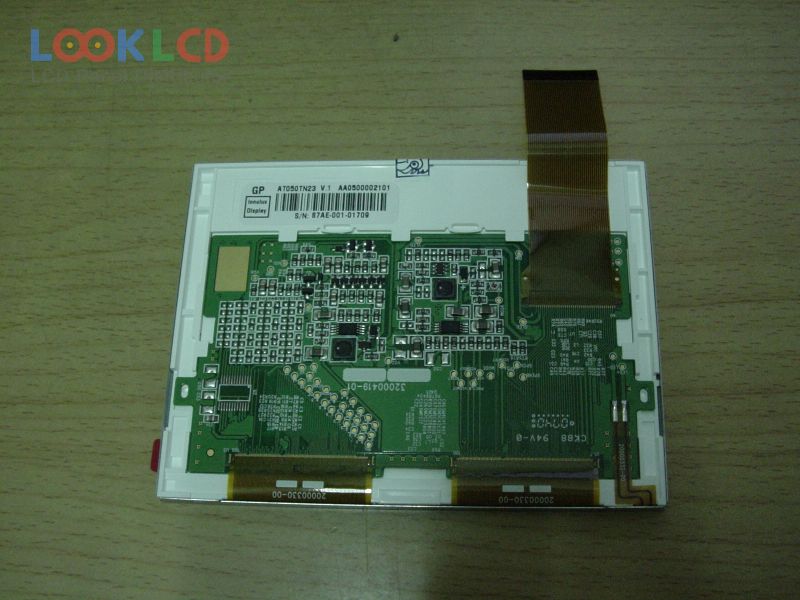

AT050TN23 V.1

AT050TN23 V.1
AT050TN23 V.1 thumb
Uphawu
Innolux
Ubungakanani
5.0
Isicelo
VDP
Isigqibo
640×480
Ukuqamba
LCM
Ukuqaqamba
350
CR
500:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
TTL
In Stock
4000
Iinkcukacha

Inombolo yendawo AT050TN23 V.1
UphawuInnolux
Ubungakanani5.0
IsiceloVDP
Isigqibo640×480
UkuqambaLCM
Ukuqaqamba350
CR500:1
Imibala262K
Isibane ngasemvaWLED
UjonganoTTL
uphawu lwephaneliINNOLUX
imodeli yephaneliAT050TN23 V.1
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli5.0 inch
isisombululo640(RGB)×480 , VGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo101.568×76.176 mm
ulwandlalo117.65×88.43×6 mm
umphezuluAntiglare
ukuqaqamba350 cd/m² (Typ.)
umlinganiselo wokuchasana500:1 (Typ.)
bonisa imibala262K (6-bit)
ixesha lokuphendula10/15 (Typ.)(Tr/Td)
i-engile yokujonga70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
uhlobo lwesibaneWLEDEmbedded (LED Driver)
ujongano lomqondisoParallel RGB (1 ch, 6-bit), 40 pins
igalelo lombane3.3V (Typ.)(VCC)
rohs:
isiceloVDP
Umzekelo woSapho
AA050ME01 Mitsubishi 5.0 800×480
AT050TN22 V.1 Innolux 5.0 640×480
AT050TN23 V.1 Innolux 5.0 640×480
AT050TN33 Innolux 5.0 480×272
AT050TN33 V.1 Innolux 5.0 480×272
AT050TN34 Innolux 5.0 480×272
AT050TN34 V.1 Innolux 5.0 480×272
AT050TN35 Innolux 5.0 480×272
AT050TN43 V.1 Innolux 5.0 800×480
H497TLB01.4 AUO 5.0 720×1280
