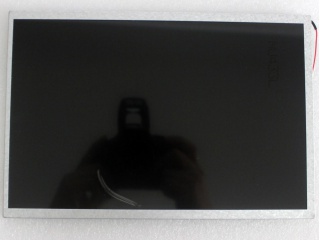

| Inombolo yendawo | AM-1280800NGTZQW-17H |
| Uphawu | AMPIRE |
| Ubungakanani | 10.1 |
| Isicelo | Industrial Outdoor H |
| Isigqibo | 1280×800 |
| Ukuqamba | a-Si TFT-LCD , LCM |
| Ukuqaqamba | |
| CR | 800:1 |
| Imibala | 16.7M |
| Isibane ngasemva | 7S6P |
| Ujongano | LVDS |
| uphawu lwephaneli | AMPIRE |
| ubungakanani bephaneli | 10.1" |
| isisombululo | 1280(RGB)×800, WXGA, 149PPI |
| indawo yokubonisa | 216.96(W)×135.6(H) mm |
| ubungakanani bamagqabantshintshi | 231(W)×154.4(H) ×6.2(D) mm |
| ukuqaqamba | 1500 cd/m² (Typ.) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| eyona mbono kwi | Symmetry |
| bonisa imibala | 16.7M 45% NTSC |
| rhoqo | 60Hz |
| Ubunzima bephaneli | TBD |
| ujongano lomqondiso | LVDS (1 ch, 8-bit) , 40 pins Connector |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| imodeli yephaneli | AM-1280800NGTZQW-17H |
| uhlobo lwephaneli | a-Si TFT-LCD , LCM |
| ifomathi ye-pixel | RGB Vertical Stripe |
| ukuvulwa kwe-bezel | 220.76(W)×140.4(H) mm |
| umphezulu | Hard coating |
| umlinganiselo wokuchasana | 800:1 (Typ.) (TM) |
| imowudi yokubonisa | IPS, Normally Black, Transmissive |
| ixesha lokuphendula | 25 (Typ.)(Tr+Td) |
| uhlobo lwesibane | 7S6P WLED , 50K hours , Without Driver |
| isikrini esibanjwayo | Without |
| isicelo | Industrial Outdoor High Brightness |
