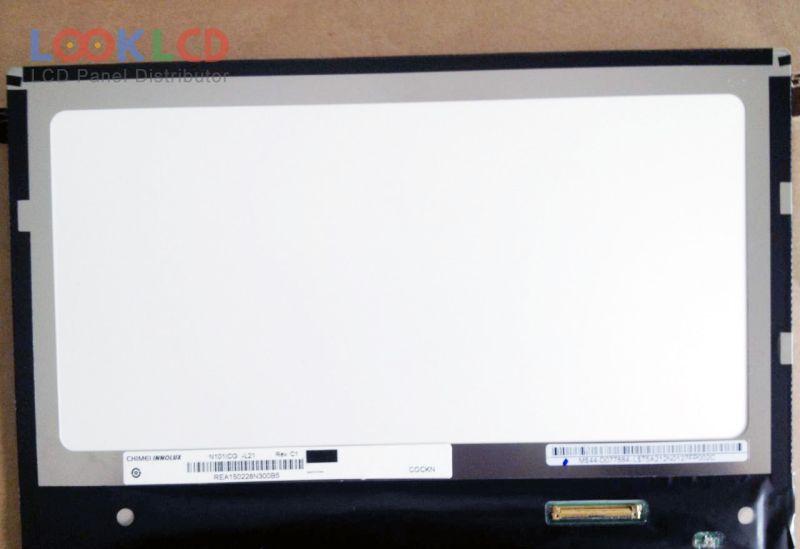

N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1
N101ICG-L21 Rev.C1 thumb
Uphawu
Innolux
Ubungakanani
10.1
Isicelo
PAD
Isigqibo
1280×800
Ukuqamba
LCM
Ukuqaqamba
350
CR
800:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
LVDS
In Stock
3180
Iinkcukacha

Inombolo yendawo N101ICG-L21 Rev.C1
UphawuInnolux
Ubungakanani10.1
IsiceloPAD
Isigqibo1280×800
UkuqambaLCM
Ukuqaqamba350
CR800:1
Imibala262K
Isibane ngasemvaWLED
UjonganoLVDS
uphawu lwephaneliCMO
imodeli yephaneliN101ICG-L21 Rev.C1 2 Compatible model
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli10.1 inch
isisombululo1280(RGB)×800 , WXGA
imowudi yokubonisaAAS, Normally Black, Transmissive
indawo esebenzayo216.96×135.6 mm
ulwandlalo227.42×147.69×4.85 mm
umphezuluGlare (Haze 0%), Hard coating (3H)
ukuqaqamba350 cd/m² (Typ.)
umlinganiselo wokuchasana800:1 (Typ.)
bonisa imibala262K (6-bit), CIE193150%
ixesha lokuphendula14/11 (Typ.)(Tr/Td)
i-engile yokujonga85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane3 stringsWLEDEmbedded (LED Driver)
ujongano lomqondisoLVDS (1 ch, 6-bit), 40 pins
igalelo lombane3.3V (Typ.)
isiceloPAD
Umzekelo woSapho
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
