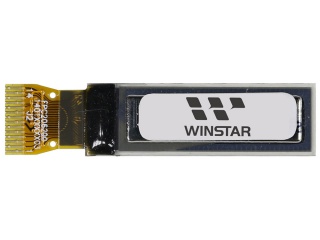

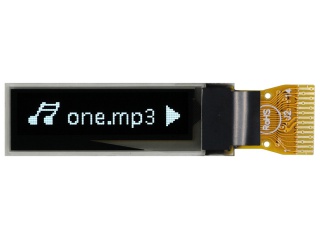

| Inombolo yendawo | WEO009616AW |
| Uphawu | Winstar |
| Ubungakanani | 0.84 |
| Isicelo | Wearable |
| Isigqibo | 96×16 |
| Ukuqamba | PM-OLED , OLED |
| Ukuqaqamba | |
| CR | |
| Imibala | Mono(White) |
| Isibane ngasemva | self |
| Ujongano | I²C |
| uphawu | Winstar |
| ubungakanani bediagonal | 0.84 inch |
| ifomathi ye-pixel | 96×16 115PPI |
| indawo esebenzayo | 21.104(H)×3.504(V) mm |
| indawo ye-bezel | 23.104(H)×5.504(V) mm |
| Jonga indlela | Symmetry |
| i-engile yokujonga | - |
| umbala inkxaso | Mono(White) |
| ubunzima | - |
| umgangatho wefreyimu | - |
| d-ic iinkcukacha | COG Built-in SSD1306BZ |
| uhlobo lojongano | I²C , 14 pins FPC |
| ukunikezwa Amandla | 3.0V (Typ.) |
| okusingqongileyo | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C |
| imodeli | WEO009616AW |
| uhlobo | PM-OLED , OLED |
| uqwalaselo | Rectangle |
| ulwandlalo mfiliba. | 29.1(H)×9.2(V) ×1.46(D) mm |
| unyango | - |
| ixesha lokuphendula | - |
| indlela yokusebenza | - |
| umthombo wokukhanya | self |
| yenzelwe | Wearable |
| indawo yokuthintela | Without |
