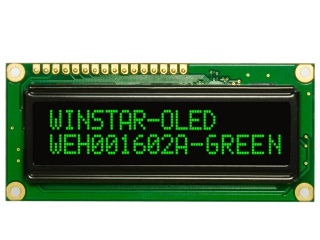

| Inombolo yendawo | WEH001602AG |
| Uphawu | Winstar |
| Ubungakanani | 2.3 |
| Isicelo | Instruments & Meters |
| Isigqibo | 5×8 |
| Ukuqamba | PM-OLED , OLED |
| Ukuqaqamba | |
| CR | 2000:1 |
| Imibala | Mono(Green) |
| Isibane ngasemva | self |
| Ujongano | CPU/SPI |
| uphawu | Winstar |
| ubungakanani bediagonal | 2.3 inch |
| ifomathi ye-char | 5×8 dots |
| isayizi yefonti | 2.95×5.55 mm |
| indawo esebenzayo | 56.95(H)×11.85(V) mm |
| indawo ye-bezel | 66(H)×16(V) mm |
| ukukhanya | - |
| Jonga indlela | Symmetry |
| i-engile yokujonga | - |
| umbala inkxaso | Mono(Green) |
| ubunzima | - |
| umgangatho wefreyimu | - |
| d-ic iinkcukacha | COB Built-in WS0010 |
| uhlobo lojongano | CPU/SPI , 16 pins Pad |
| ukunikezwa Amandla | 5.0V (Typ.) |
| okusingqongileyo | Operating Temperature: -40 ~ 80 °C - |
| imodeli | WEH001602AG |
| uhlobo | PM-OLED , OLED |
| inowuthi yefonti | 3.6×6.3 mm |
| ulwandlalo mfiliba. | 80(H)×36(V) ×10(D) mm |
| unyango | - |
| umlinganiselo wokuchasana | 2000:1 (Typ.) (TM) |
| ixesha lokuphendula | 0.01 (Typ.) |
| indlela yokusebenza | - |
| umthombo wokukhanya | self |
| yenzelwe | Instruments & Meters |
| indawo yokuthintela | Without |
