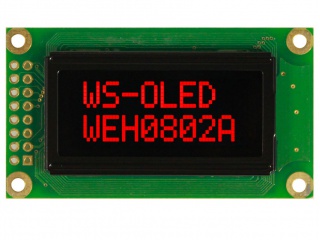

| Inombolo yendawo | WEH000802AR |
| Uphawu | Winstar |
| Ubungakanani | 1.2 |
| Isicelo | Instruments & Me |
| Isigqibo | 5×8 |
| Ukuqamba | PM-OLED, OLED |
| Ukuqaqamba | |
| CR | |
| Imibala | Mono(Red) |
| Isibane ngasemva | self |
| Ujongano | CPU/SPI |
| uphawu | Winstar |
| imodeli | WEH000802AR |
| ubungakanani bediagonal | 1.2 inch |
| uhlobo | PM-OLED, OLED |
| ifomathi ye-char | 5×8 dots |
| isayizi yefonti | 2.96×5.56 mm |
| inowuthi yefonti | 3.6×6.3 mm |
| indawo esebenzayo | 28.16(H)×11.89(V) mm |
| ulwandlalo mfiliba. | 58(H)×32(V) ×10(D) mm |
| indawo ye-bezel | 38(H)×16(V) mm |
| unyango | - |
| Jonga indlela | Symmetry |
| ixesha lokuphendula | - |
| i-engile yokujonga | - |
| indlela yokusebenza | - |
| umbala inkxaso | Mono(Red) |
| umthombo wokukhanya | self |
| ubunzima | - |
| yenzelwe | Instruments & Meters |
| umgangatho wefreyimu | - |
| indawo yokuthintela | Without |
| d-ic iinkcukacha | COB Built-in WS0010 |
| uhlobo lojongano | CPU/SPI , 16 pins Pad |
| ukunikezwa Amandla | 5.0V (Typ.) |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| NVK-080SC002T-S-0200 | Neoview Kolon | 1.2 | 128×80 |
