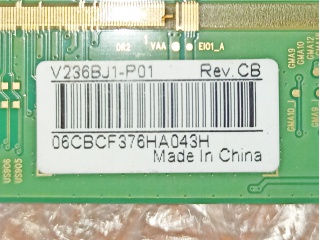

| Inombolo yendawo | V236BJ1-P01 Rev.CB |
| Uphawu | Innolux |
| Ubungakanani | 23.6 |
| Isicelo | TV Sets |
| Isigqibo | 1366×768 |
| Ukuqamba | CELL , a-Si TFT-LC |
| Ukuqaqamba | |
| CR | 3000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | No |
| Ujongano | LVDS |
| umenzi | Innolux |
| igama lemodeli | V236BJ1-P01 Rev.CB |
| ubungakanani besikrini | 23.6 inch |
| uhlobo lwesikrini | CELL , a-Si TFT-LCD |
| inombolo pixel | 1366(RGB)×768 (WXGA) 66PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 521.471 × 293.184 (H×V) |
| Ulwandlalo(mm) | 535.06 × 307.34 × 1.32 (H×V×D) |
| indawo ye-bezel(mm) | - |
| unyango | Antiglare (Haze 1%) |
| ukukhanya | 0 cd/m² |
| umlinganiselo wokuchasana | 3000 : 1 (Typ.) (TM) |
| i-engile yokujonga | 89/89/89/89 (Typ.)(CR≥10) |
| impendulo | 8.5 (Typ.)(G to G) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | MVA, Normally Black, Transmissive |
| ubukhulu beglasi | 0.50+0.50 mm |
| transmissivity | 5.6% (Typ.)(with Polarizer) |
| ubunzulu bombala | 16.7M 69% NTSC |
| isibane esingasemva | No B/L |
| ubunzima | 510g (Typ.) |
| esetyenziselwa | TV Sets |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| umqhubi ic uluhlu | Built-in COF 2 source chips |
| uhlobo lomqondiso | LVDS (1 ch, 8-bit) , 30 pins Connector |
| unikezelo lombane | 12.0V (Typ.) |
| max. amanqaku | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| M236HJJ-L30 | Innolux | 23.6 | 1920×1080 |
| M236HJK-L3B | Innolux | 23.6 | 1920×1080 |
| P236MWF1 R2 | IVO | 23.6 | 1920×1080 |
| V236BJ1-LE2 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P01 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P01 Rev.C3 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P02 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P03 | Innolux | 23.6 | 1366×768 |
| V236BJ1-PE2 | Innolux | 23.6 | 1366×768 |
