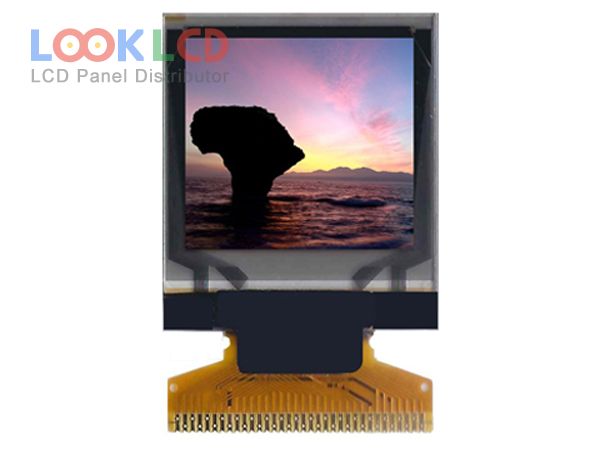

| Inombolo yendawo | UG-9696TDDCG02 |
| Uphawu | WiseChip |
| Ubungakanani | 1.1 |
| Isicelo | IA |
| Isigqibo | 96×96 |
| Ukuqamba | OLED |
| Ukuqaqamba | 100 |
| CR | 10000:1 |
| Imibala | 65K |
| Isibane ngasemva | self |
| Ujongano | CPU/SPI |
| uphawu lwephaneli | WiseChip |
| imodeli yephaneli | UG-9696TDDCG02 |
| uhlobo lwephaneli | PM-OLED , OLED |
| ubungakanani bephaneli | 1.1 inch |
| isisombululo | 96(RGB)×96 |
| indawo esebenzayo | 19.852×19.852 mm |
| ulwandlalo | 25.9×30.1×1.4 mm |
| umphezulu | |
| ukuqaqamba | 100 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 10000 : 1 (Typ.) |
| bonisa imibala | 65K |
| i-engile yokujonga | |
| umqhubi ic | COG Built-in SEPS114A |
| ujongano lomqondiso | 8-bit 6800/8080 parallel, 4-wire SPI, 34 pins |
| igalelo lombane | 2.8/2.8/12.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| isicelo | IA |
