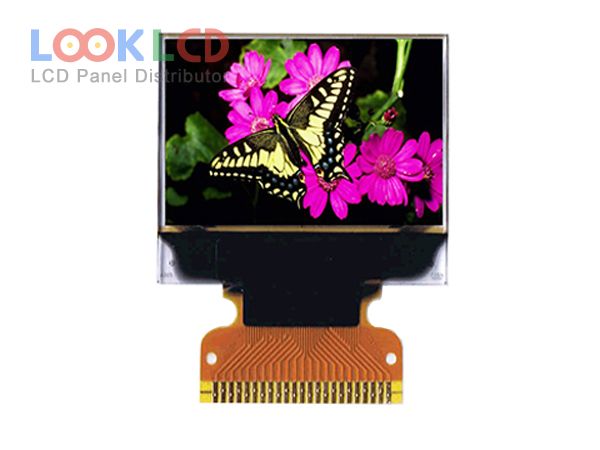

| Inombolo yendawo | UG-9664HDDAG01 |
| Uphawu | WiseChip |
| Ubungakanani | 0.95 |
| Isicelo | IA |
| Isigqibo | 96×64 |
| Ukuqamba | OLED |
| Ukuqaqamba | 100 |
| CR | 1000:1 |
| Imibala | 65K |
| Isibane ngasemva | self |
| Ujongano | CPU/SPI |
| uphawu lwephaneli | WiseChip |
| imodeli yephaneli | UG-9664HDDAG01 |
| uhlobo lwephaneli | PM-OLED , OLED |
| ubungakanani bephaneli | 0.95 inch |
| isisombululo | 96(RGB)×64 |
| indawo esebenzayo | 20.14×13.42 mm |
| ulwandlalo | 25.7×22.2×1.6 mm |
| umphezulu | |
| ukuqaqamba | 100 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000 : 1 (Typ.) |
| bonisa imibala | 65K |
| i-engile yokujonga | 80/80/80/80 (Min.)(L/R/U/D) |
| umqhubi ic | COG Built-in SSD1331Z |
| ujongano lomqondiso | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| igalelo lombane | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| isicelo | IA |
