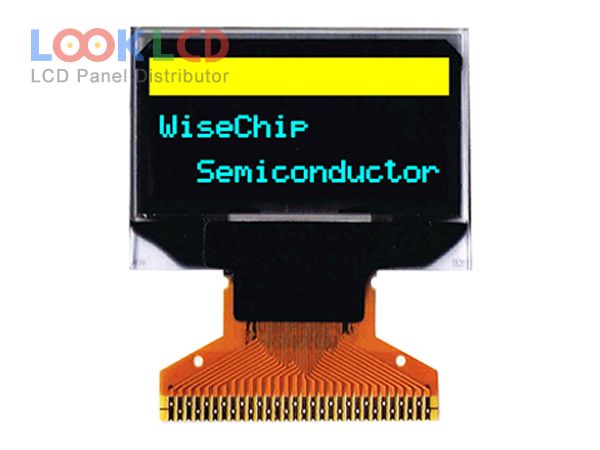

| Inombolo yendawo | UG-2864HMBEG01 |
| Uphawu | WiseChip |
| Ubungakanani | 0.96 |
| Isicelo | IA |
| Isigqibo | 128×64 |
| Ukuqamba | OLED |
| Ukuqaqamba | 120 |
| CR | 2000:1 |
| Imibala | Area(BY) |
| Isibane ngasemva | self |
| Ujongano | CPU/SPI/I²C |
| uphawu lwephaneli | Univision |
| imodeli yephaneli | UG-2864HMBEG01 |
| uhlobo lwephaneli | PM-OLED , OLED |
| ubungakanani bephaneli | 0.96 inch |
| isisombululo | 128×64 |
| indawo esebenzayo | 21.744×11.204 mm |
| ulwandlalo | 26.7×19.26×1.55 mm |
| umphezulu | |
| ukuqaqamba | 120 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 2000 : 1 (Typ.) |
| bonisa imibala | Area(BY) |
| i-engile yokujonga | 80/80/80/80 (Min.)(L/R/U/D) |
| umqhubi ic | COG Built-in SSD1306 |
| ujongano lomqondiso | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| igalelo lombane | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| isicelo | IA |
