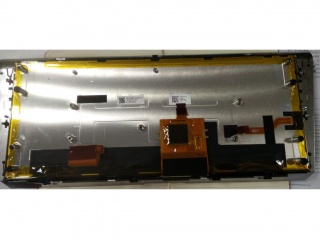

| Inombolo yendawo | TM123XDHP01 |
| Uphawu | TIANMA |
| Ubungakanani | 12.3 |
| Isicelo | Industrial Automotiv |
| Isigqibo | 1920×720 |
| Ukuqamba | a-Si TFT-LCD , LCM |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | WLED |
| Ujongano | |
| uphawu | TIANMA |
| ubungakanani bediagonal | 12.3 inch |
| ifomathi ye-pixel | 1920(RGB)×720 166PPI |
| indawo esebenzayo | 292.32(H)×109.62(V) mm |
| ukukhanya | - |
| Jonga indlela | Symmetry |
| i-engile yokujonga | - |
| umbala inkxaso | 16.7M sRGB |
| ubunzima | - |
| umgangatho wefreyimu | 60Hz |
| okusingqongileyo | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| imodeli | TM123XDHP01 |
| uhlobo | a-Si TFT-LCD , LCM |
| uqwalaselo | RGB Vertical Stripe |
| ulwandlalo mfiliba. | - |
| umlinganiselo wokuchasana | 1000:1 (Typ.) (TM) |
| ixesha lokuphendula | 25 (Typ.)(Tr+Td) |
| indlela yokusebenza | SFT, Normally Black, Transmissive |
| umthombo wokukhanya | WLED |
| yenzelwe | Industrial Automotive Display |
| indawo yokuthintela | Without |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
