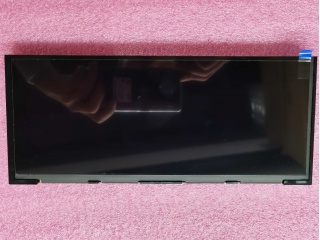

| Inombolo yendawo | TM103XDKP05 |
| Uphawu | TIANMA |
| Ubungakanani | 10.3 |
| Isicelo | Outdoor High Brightn |
| Isigqibo | 1920×720 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | WLED |
| Ujongano | |
| uphawu | TIANMA |
| imodeli | TM103XDKP05 |
| ubungakanani bediagonal | 10.3 inch |
| uhlobo | a-Si TFT-LCD, LCM |
| ifomathi ye-pixel | 1920(RGB)×720 200PPI |
| uqwalaselo | RGB Vertical Stripe |
| indawo esebenzayo | 243.648(H)×91.368(V) mm |
| ulwandlalo mfiliba. | 259.84(H)×109.3(V) mm |
| indawo ye-bezel | - |
| unyango | Hard coating, Reflection 5.5% (Typ.) |
| ukukhanya | 1000 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000:1 (Typ.) (TM) |
| Jonga indlela | Symmetry |
| ixesha lokuphendula | 25 (Typ.)(Tr+Td) |
| i-engile yokujonga | 88/88/88/88 (Typ.)(CR≥10) |
| indlela yokusebenza | SFT, Normally Black, Transmissive |
| umbala inkxaso | 16.7M 75% NTSC |
| umthombo wokukhanya | WLED [9S4P] , 10K hours , W/O Driver |
| ubunzima | 300g (Typ.) |
| yenzelwe | Outdoor High Brightness Automotive Display |
| umgangatho wefreyimu | 60Hz |
| indawo yokuthintela | Without |
| Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| DJ103FA-01A | Innolux | 10.3 | 1920×720 |
