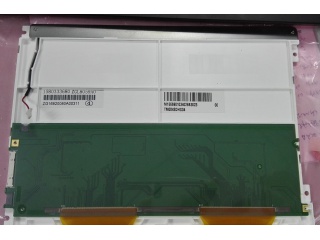

| Inombolo yendawo | TM084SDHG04 |
| Uphawu | TIANMA |
| Ubungakanani | 8.4 |
| Isicelo | Industrial |
| Isigqibo | 800×600 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 500:1 |
| Imibala | 262K |
| Isibane ngasemva | 8S3P |
| Ujongano | LVDS |
| uphawu lwephaneli | TIANMA |
| imodeli yephaneli | TM084SDHG04 |
| ubungakanani bephaneli | 8.4" |
| uhlobo lwephaneli | a-Si TFT-LCD, LCM |
| isisombululo | 800(RGB)×600, SVGA, 119PPI |
| ifomathi ye-pixel | RGB Vertical Stripe |
| indawo yokubonisa | 170.4(W)×127.8(H) mm |
| ukuvulwa kwe-bezel | 173.0(W)×130.6(H) mm |
| ubungakanani bamagqabantshintshi | 203(W)×143.5(H) ×7.05(D) mm |
| umphezulu | Antiglare |
| ukuqaqamba | 350 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 500:1 (Typ.) (TM) |
| i-engile yokujonga | 70/70/60/70 (Typ.)(CR≥10) |
| imowudi yokubonisa | TN, Normally White, Transmissive |
| eyona mbono kwi | 12 o'clock |
| ixesha lokuphendula | 20 (Typ.)(Tr+Td) |
| bonisa imibala | 262K 40% NTSC |
| uhlobo lwesibane | 8S3P WLED , 30K hours , With LED Driver |
| rhoqo | 60Hz |
| isikrini esibanjwayo | Without |
| Ubunzima bephaneli | 240g (Typ.) |
| isicelo | Industrial |
| ujongano lomqondiso | LVDS (1 ch, 6-bit) , 20 pins Connector |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LQ9D024 | SHARP | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| TM084SBHG04 | Tianma | 8.4 | 800×600 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
| TM084SDHG50 | Tianma | 8.4 | 800×600 |
