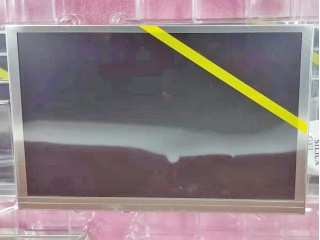

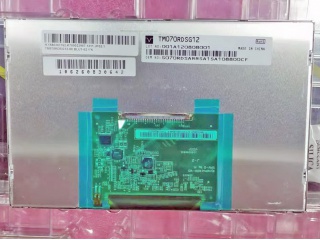

| Inombolo yendawo | TM070RDSG12 |
| Uphawu | TIANMA |
| Ubungakanani | 7.0 |
| Isicelo | Industrial |
| Isigqibo | 800×480 |
| Ukuqamba | LCM, a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 262K/16.7M |
| Isibane ngasemva | 7S3P |
| Ujongano | |
| umenzi | TIANMA |
| igama lemodeli | TM070RDSG12 |
| ubungakanani besikrini | 7.0 inch |
| uhlobo lwesikrini | LCM, a-Si TFT-LCD |
| inombolo pixel | 800(RGB)×480 (WVGA) 133PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 152.4 × 91.44 (H×V) |
| Ulwandlalo(mm) | 167 × 106.3 × 9.8 (H×V×D) |
| indawo ye-bezel(mm) | 154.4 × 93.44 (H×V) |
| unyango | Antiglare |
| ukukhanya | 400 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000 : 1 (Typ.) (TM) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| impendulo | 20 (Typ.)(Tr+Td) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | SFT, Normally Black, Transmissive |
| ubunzulu bombala | 262K/16.7M 70% NTSC |
| isibane esingasemva | 7S3P WLED , 50K hours , With LED Driver |
| ubunzima | 175g (Typ.) |
| esetyenziselwa | Industrial |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
