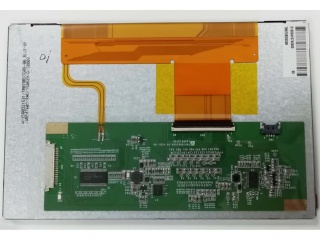

| Inombolo yendawo | TM070RDSG08 |
| Uphawu | TIANMA |
| Ubungakanani | 7.0 |
| Isicelo | Industrial |
| Isigqibo | 800×480 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 500:1 |
| Imibala | 262K/16.7M |
| Isibane ngasemva | 10S3P |
| Ujongano | LVDS |
| umenzi | TIANMA |
| ubungakanani besikrini | 7.0 inch |
| inombolo pixel | 800(RGB)×480 (WVGA) 133PPI |
| indawo esebenzayo(mm) | 152.4 × 91.44 (H×V) |
| indawo ye-bezel(mm) | 155.4 × 94.44 (H×V) |
| ukukhanya | 500 cd/m² (Typ.) |
| i-engile yokujonga | 70/70/70/60 (Typ.)(CR≥10) |
| umbono omhle kwi | - |
| ubunzulu bombala | 262K/16.7M 70% NTSC |
| ubunzima | 176g (Typ.) |
| izinga lokuhlaziya | 60Hz |
| uhlobo lomqondiso | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| unikezelo lombane | 3.3V (Typ.) |
| max. amanqaku | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| igama lemodeli | TM070RDSG08 |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| ilungiselelo | RGB Vertical Stripe |
| Ulwandlalo(mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| unyango | Antiglare |
| umlinganiselo wokuchasana | 500 : 1 (Typ.) (TM) |
| impendulo | 25 (Typ.)(Tr+Td) ms |
| imo yomsebenzi | TN, Normally White, Transmissive |
| isibane esingasemva | 10S3P WLED , 50K hours , With LED Driver |
| esetyenziselwa | Industrial |
| isikrini esibanjwayo | Without |
