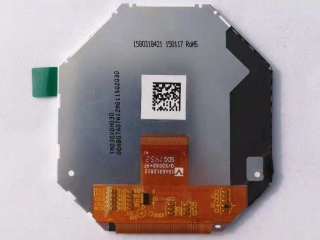

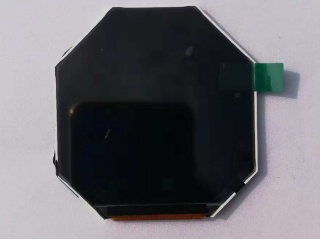

| Inombolo yendawo | TM030XDHG30 |
| Uphawu | TIANMA |
| Ubungakanani | 2.1 |
| Isicelo | Round Display Instru |
| Isigqibo | 480×480 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 800:1 |
| Imibala | 16.7M |
| Isibane ngasemva | 4S1P |
| Ujongano | Parallel |
| umenzi | TIANMA |
| igama lemodeli | TM030XDHG30 |
| ubungakanani besikrini | 2.1 inch |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| inombolo pixel | 480(RGB)×480 228PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 53.28 × 53.28 (H×V) |
| Ulwandlalo(mm) | 58.01 × 61.38 × 2.65 (H×V×D) |
| indawo ye-bezel(mm) | - |
| unyango | Hard coating |
| ukukhanya | 450 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 800 : 1 (Typ.) (TM) |
| i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10) |
| impendulo | 25 (Typ.)(Tr+Td) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | SFT, Normally Black, Transmissive |
| ubunzulu bombala | 16.7M 53% NTSC |
| isibane esingasemva | 4S1P WLED , No Driver |
| ubunzima | 16.9g (Typ.) |
| esetyenziselwa | Round Display Instruments & Meters |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| uhlobo lomqondiso | Parallel RGB (1 ch, 8-bit) + SPI , 41 pins FPC |
| unikezelo lombane | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| max. amanqaku | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| TM030LBHT1 | Tianma | 3.0 | 240×400 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
| TM030LDHT2 | Tianma | 3.0 | 240×400 |
| TM030ZDHG01 | Tianma | 3.0 | 320×320 |
