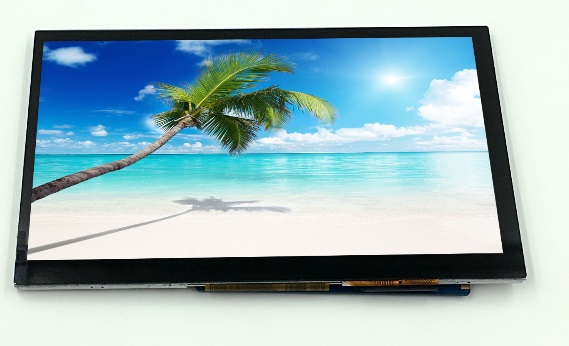

| Inombolo yendawo | S101WS07 |
| Uphawu | CDTECH |
| Ubungakanani | 10.1 |
| Isicelo | Industrial |
| Isigqibo | 1024×600 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 600:1 |
| Imibala | 16.7M |
| Isibane ngasemva | 3S6P |
| Ujongano | Parallel |
| umenzi | CDTECH |
| ubungakanani besikrini | 10.1 inch |
| inombolo pixel | 1024(RGB)×600 (WSVGA) 117PPI |
| indawo esebenzayo(mm) | 222.72 × 125.28 (H×V) |
| indawo ye-bezel(mm) | 226.34 × 128.1 (H×V) |
| ukukhanya | 200 cd/m² (Typ.) |
| i-engile yokujonga | 65/65/55/65 (Typ.)(CR≥10) |
| umbono omhle kwi | 12 o'clock |
| ubunzulu bombala | 16.7M |
| ubunzima | TBD |
| izinga lokuhlaziya | 60Hz |
| uhlobo lomqondiso | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| unikezelo lombane | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. amanqaku | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| igama lemodeli | S101WS07 |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| ilungiselelo | RGB Vertical Stripe |
| Ulwandlalo(mm) | 235 × 143 × 5.39 (H×V×D) |
| unyango | - |
| umlinganiselo wokuchasana | 600 : 1 (Typ.) (TM) |
| impendulo | 6/20 (Typ.)(Tr/Td) ms |
| imo yomsebenzi | TN, Normally White, Transmissive |
| isibane esingasemva | 3S6P WLED , 25K hours , No Driver |
| esetyenziselwa | Industrial |
| isikrini esibanjwayo | Without |
