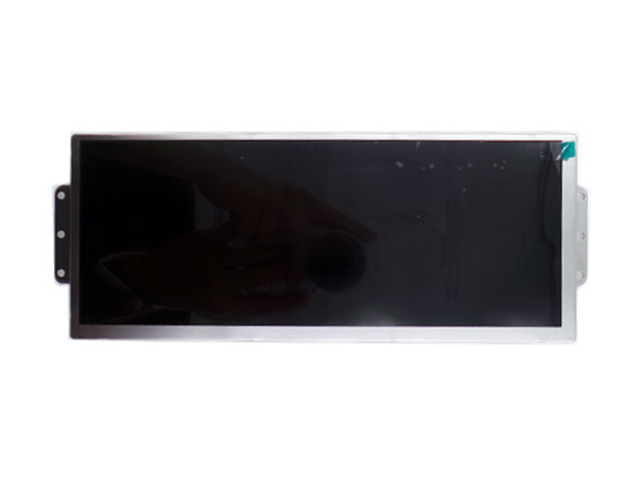

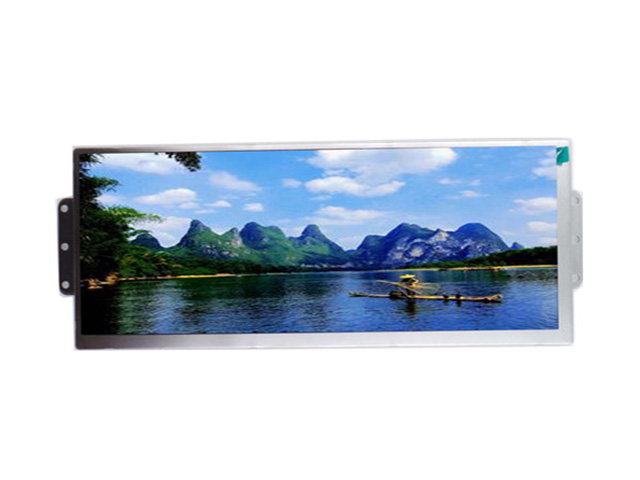

| Inombolo yendawo | S091WX02 |
| Uphawu | CDTECH |
| Ubungakanani | 9.1 |
| Isicelo | Industrial Stretched |
| Isigqibo | 1280×480 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 800:1 |
| Imibala | 16.7M |
| Isibane ngasemva | 3S12P |
| Ujongano | LVDS |
| umenzi | CDTECH |
| igama lemodeli | S091WX02 |
| ubungakanani besikrini | 9.1 inch (3/5 cut of 10.1") |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| inombolo pixel | 1280(RGB)×480 (DVGA) 149PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 216.96 × 81.36 (H×V) |
| Ulwandlalo(mm) | 231.6 × 94.7 (H×V×D) |
| indawo ye-bezel(mm) | 220.46 × 84.86 (H×V) |
| unyango | - |
| ukukhanya | 500 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 800 : 1 (Typ.) (TM) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| impendulo | 10/15 (Typ.)(Tr/Td) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | IPS, Normally Black, Transmissive |
| ubunzulu bombala | 16.7M |
| isibane esingasemva | 3S12P WLED , 30K hours , No Driver |
| ubunzima | TBD |
| esetyenziselwa | Industrial Stretched Bar LCD |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| uhlobo lomqondiso | LVDS (1 ch, 8-bit) , 40 pins Connector |
| unikezelo lombane | 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. amanqaku | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
