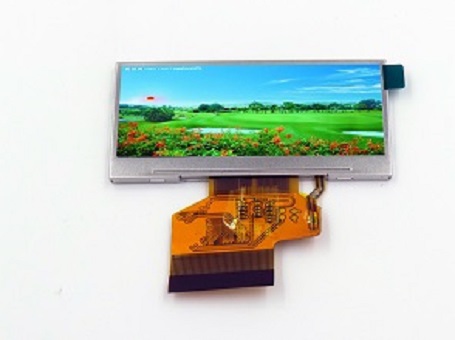

| Inombolo yendawo | S029Q03 |
| Uphawu | CDTECH |
| Ubungakanani | 2.9 |
| Isicelo | Stretched Bar LCD |
| Isigqibo | 320×120 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 400:1 |
| Imibala | 262K |
| Isibane ngasemva | WLED |
| Ujongano | 8/9/16/18-bit |
| uphawu | CDTECH |
| imodeli | S029Q03 |
| ubungakanani bediagonal | 2.9 inch (1/2 cut of 3.5") |
| uhlobo | a-Si TFT-LCD, LCM |
| ifomathi ye-pixel | 320(RGB)×120 115PPI |
| uqwalaselo | RGB Vertical Stripe |
| indawo esebenzayo | 70.08(H)×26.284(V) mm |
| ulwandlalo mfiliba. | 76.9(H)×37.72(V) ×3.46(D) mm |
| indawo ye-bezel | 72.68(H)×28.88(V) mm |
| unyango | - |
| ukukhanya | 300 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 400:1 (Typ.) (TM) |
| Jonga indlela | 12 o'clock |
| ixesha lokuphendula | 8/17 (Typ.)(Tr/Td) |
| i-engile yokujonga | 65/65/55/65 (Typ.)(CR≥10) |
| indlela yokusebenza | TN, Normally White, Transmissive |
| umbala inkxaso | 262K 61% NTSC |
| umthombo wokukhanya | WLED [6S1P] , 30K hours , W/O Driver |
| ubunzima | TBD |
| yenzelwe | Stretched Bar LCD |
| umgangatho wefreyimu | - |
| indawo yokuthintela | Without |
| uhlobo lojongano | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| ukunikezwa Amandla | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| okusingqongileyo | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
