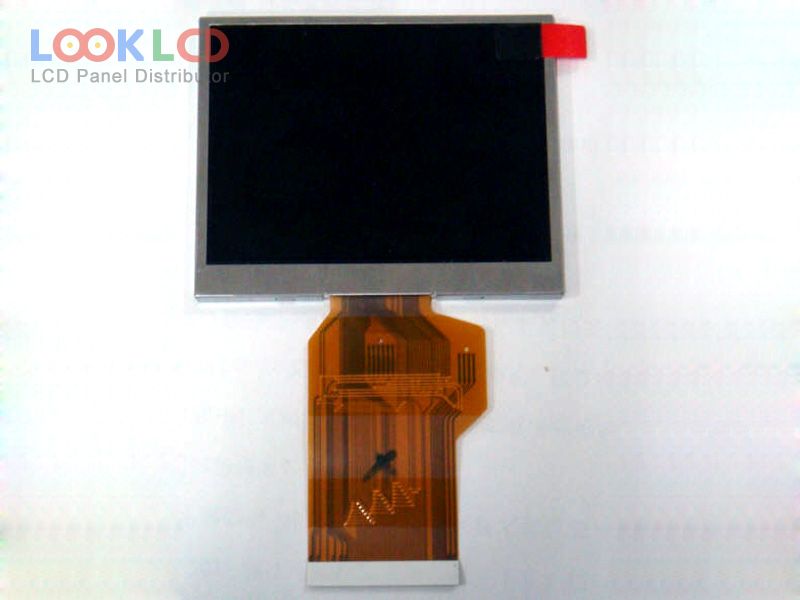

PT035TN01 V.3

PT035TN01 V.3
PT035TN01 V.3 thumb
Uphawu
Innolux
Ubungakanani
3.5
Isicelo
PND
Isigqibo
320×240
Ukuqamba
LCM
Ukuqaqamba
250
CR
300:1
Imibala
16.7M
Isibane ngasemva
WLED
Ujongano
Parallel/Serial
In Stock
1816
Iinkcukacha

Inombolo yendawo PT035TN01 V.3
UphawuInnolux
Ubungakanani3.5
IsiceloPND
Isigqibo320×240
UkuqambaLCM
Ukuqaqamba250
CR300:1
Imibala16.7M
Isibane ngasemvaWLED
UjonganoParallel/Serial
uphawu lwephaneliINNOLUX
imodeli yephaneliPT035TN01 V.3
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli3.5 inch
isisombululo320(RGB)×240 , QVGA
imowudi yokubonisaTN, Normally White, TMR
indawo esebenzayo70.08×52.56 mm
ulwandlalo78.2×65×3.8 mm
umphezuluHard coating
ukuqaqamba250 cd/m² (Typ.)
umlinganiselo wokuchasana300 : 1 (Typ.)
bonisa imibala16.7M (8-bit)
ixesha lokuphendula15/20 (Typ.)(Tr/Td)
i-engile yokujonga65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane6S1PWLEDWithout Driver
ujongano lomqondisoDigital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins
igalelo lombane3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
isiceloPND
Umzekelo woSapho
CLAA035JA01CW CPT 3.5 144×480
COM35H3M10XTC ORTUSTECH 3.5 240×320
EL160.80.50 ET Lumineq 3.5 160×80
LQ035Q5DG11 SHARP 3.5 320×240
PD035QX1 E Ink 3.5 240×320
PT035TN01 V.3 Innolux 3.5 320×240
PT035TN01 V.6 Innolux 3.5 320×240
PT035TN23 V.1 Innolux 3.5 320×240
PT035TN23 V.3 Innolux 3.5 320×240
TM035PDH53 Tianma 3.5 320×480
