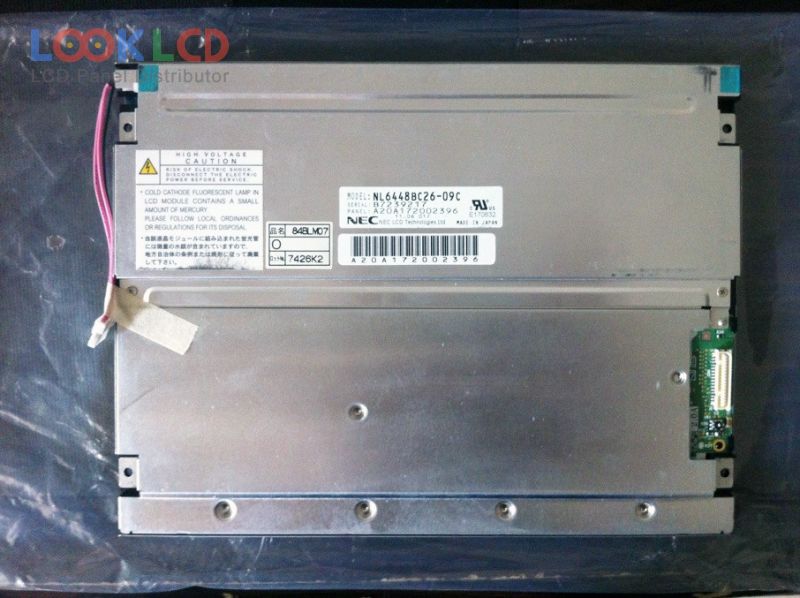

Inombolo yendawo | NL6448BC26-09C |
Uphawu | NLT |
Ubungakanani | 8.4 |
Isicelo | IA |
Isigqibo | 640×480 |
Ukuqamba | LCM |
Ukuqaqamba | 750 |
CR | 600:1 |
Imibala | 262K |
Isibane ngasemva | CCFL |
Ujongano | TTL |
uphawu lwephaneli | NEC |
imodeli yephaneli | NL6448BC26-09C |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 8.4 inch |
isisombululo | 640(RGB)×480 , VGA |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 170.88×128.16 mm |
ulwandlalo | 200×152×11 mm |
umphezulu | Clear, Hard coating (2H), Antireflection |
ukuqaqamba | 750 cd/m² (Typ.) |
umlinganiselo wokuchasana | 600:1 (Typ.) |
bonisa imibala | 262K (6-bit), CIE193140% |
ixesha lokuphendula | 6/19 (Typ.)(Tr/Td) |
i-engile yokujonga | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | 2 pcsCCFLWithout Driver |
ujongano lomqondiso | CMOS (1 ch, 6-bit), 31 pins |
igalelo lombane | 3.3/5.0V (Typ.) |
isicelo | IA |
