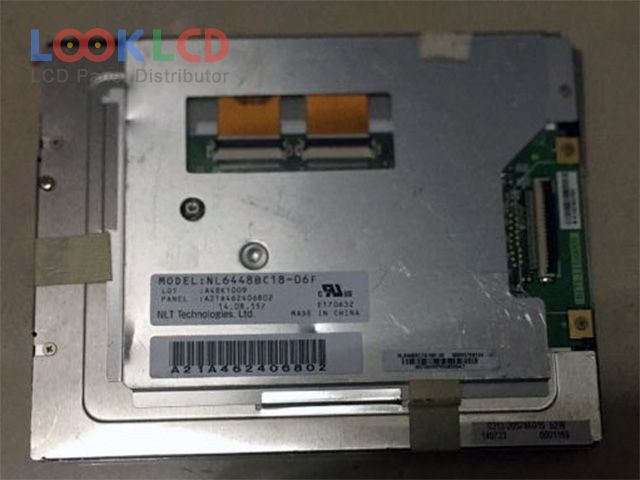

Inombolo yendawo | NL6448BC18-06F |
Uphawu | NLT |
Ubungakanani | 5.7 |
Isicelo | IA |
Isigqibo | 640×480 |
Ukuqamba | LCM |
Ukuqaqamba | 800 |
CR | 850:1 |
Imibala | 262K |
Isibane ngasemva | WLED |
Ujongano | TTL |
uphawu lwephaneli | NEC |
imodeli yephaneli | NL6448BC18-06F |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 5.7 inch |
isisombululo | 640(RGB)×480 , VGA |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 116.16×87.12 mm |
ulwandlalo | 135×104.6×11 mm |
umphezulu | Clear, Hard coating (3H) |
ukuqaqamba | 800 cd/m² (Typ.) |
umlinganiselo wokuchasana | 850:1 (Typ.) |
bonisa imibala | 262K (6-bit), CIE193160% |
ixesha lokuphendula | 3/15 (Typ.)(Tr/Td) |
i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | 9S2P×2CNWLEDWithout Driver |
ujongano lomqondiso | Parallel RGB (1 ch, 6-bit), 40 pins |
igalelo lombane | 3.3V (Typ.) |
isicelo | IA |
NL6448BC18-06F | NLT | 5.7 | 640×480 |
NL6448BC20-08 | NLT | 6.5 | 640×480 |
NL6448BC20-18D | NLT | 6.5 | 640×480 |
NL6448BC20-35D | NLT | 6.5 | 640×480 |
NL6448BC26-01 | NLT | 8.4 | 640×480 |
NL6448BC26-08D | NLT | 8.4 | 640×480 |
NL6448BC26-09 | NLT | 8.4 | 640×480 |
NL6448BC26-11 | NLT | 8.4 | 640×480 |
NL6448BC33-59 | NLT | 10.4 | 640×480 |
NL6448BC33-59D | NLT | 10.4 | 640×480 |
G104V1-T03 | Innolux | 10.4 | 640×480 |
G220SW01 V0 | AUO | 22.0 | 1680×1050 |
LQ104S1LG31 | SHARP | 10.4 | 800×600 |
LQ104V1DG21 | SHARP | 10.4 | 640×480 |
LQ9D001 | SHARP | 8.4 | 640×480 |
LTD121C33U | TOSHIBA | 12.1 | 800×600 |
MD400F640PD5 | Panasonic | 9.8 | 640×400 |
NL10276BC16-06D | NLT | 8.4 | 1024×768 |
NL6448BC33-70D | NLT | 10.4 | 640×480 |
SP14N002 | KOE | 5.1 | 240×128 |
