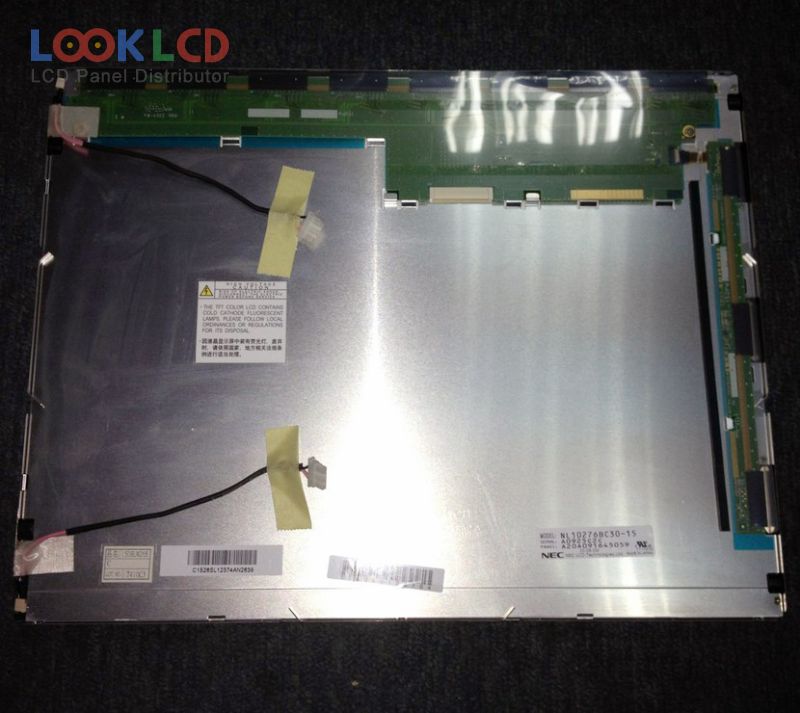

Inombolo yendawo | NL10276BC30-15 |
Uphawu | NLT |
Ubungakanani | 15.0 |
Isicelo | IA |
Isigqibo | 1024×768 |
Ukuqamba | LCM |
Ukuqaqamba | 250 |
CR | 400:1 |
Imibala | 16.7M |
Isibane ngasemva | CCFL |
Ujongano | LVDS |
uphawu lwephaneli | NEC |
imodeli yephaneli | NL10276BC30-15 |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 15.0 inch |
isisombululo | 1024(RGB)×768 , XGA |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 304.128×228.096 mm |
ulwandlalo | 328×252×11.5 mm |
umphezulu | Antiglare, Hard coating (3H) |
ukuqaqamba | 250 cd/m² (Typ.) |
umlinganiselo wokuchasana | 400:1 (Typ.) |
bonisa imibala | 16.7M (6-bit + Hi-FRC), CIE193160% |
ixesha lokuphendula | 8/17 (Typ.)(Tr/Td) |
i-engile yokujonga | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | 2 pcsCCFLWithout Driver |
ujongano lomqondiso | LVDS (1 ch, 8-bit), 20 pins |
igalelo lombane | 3.3V (Typ.) |
isicelo | IA |
