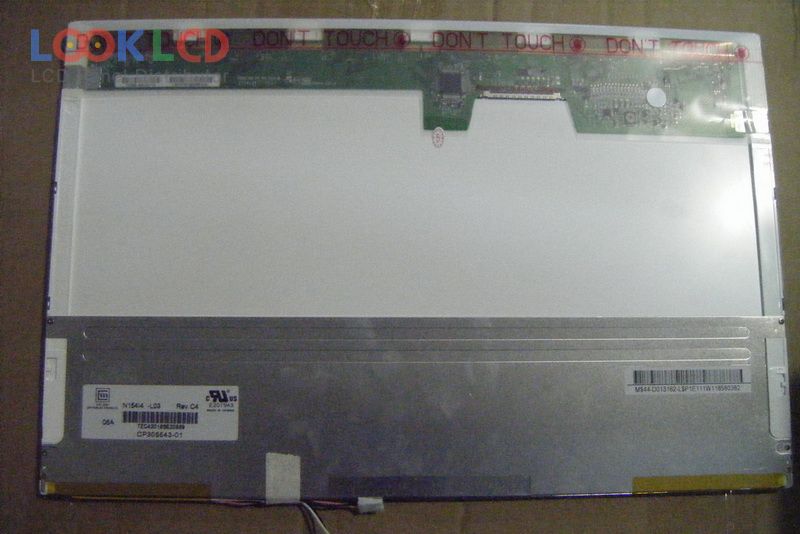

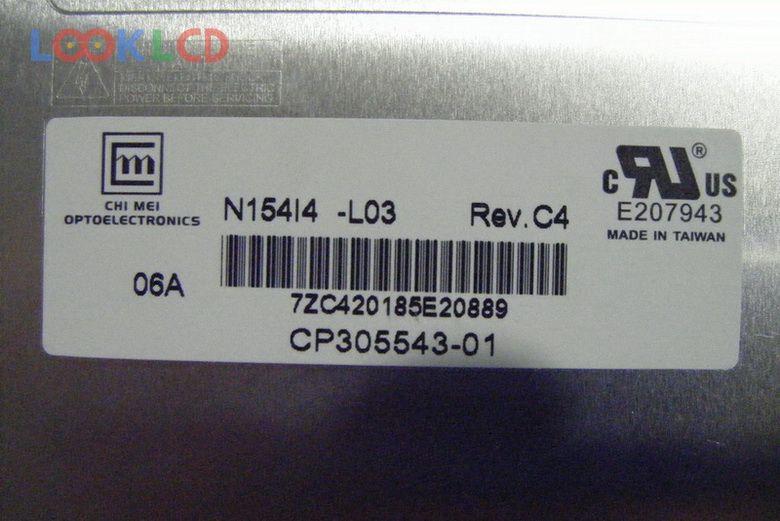

N154I4-L03

N154I4-L03
N154I4-L03
N154I4-L03 thumb N154I4-L03 thumb
Uphawu
Innolux
Ubungakanani
15.4
Isicelo
NBPC
Isigqibo
1280×800
Ukuqamba
LCM
Ukuqaqamba
600
CR
800:1
Imibala
262K
Isibane ngasemva
CCFL
Ujongano
LVDS
In Stock
10
Iinkcukacha

Inombolo yendawo N154I4-L03
UphawuInnolux
Ubungakanani15.4
IsiceloNBPC
Isigqibo1280×800
UkuqambaLCM
Ukuqaqamba600
CR800:1
Imibala262K
Isibane ngasemvaCCFL
UjonganoLVDS
uphawu lwephaneliCMO
imodeli yephaneliN154I4-L03 3 Compatible model
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli15.4 inch
isisombululo1280(RGB)×800 , WXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo331.2×207 mm
ulwandlalo344×224×6.5 mm
isitayile semiloWedge (PCBA Bent, Depth ≥5.2mm)
umphezuluGlare (Haze 0%), Hard coating (3H)
ukuqaqamba600 cd/m² (Typ.)
umlinganiselo wokuchasana800:1 (Typ.)
bonisa imibala262K (6-bit)
ixesha lokuphendula1.3/3.7 (Typ.)(Tr/Td)
i-engile yokujonga60/60/40/60 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane2 pcsCCFLWithout Driver
ujongano lomqondisoLVDS (1 ch, 6-bit), 30 pins
igalelo lombane3.3V (Typ.)
isiceloNBPC
Umzekelo woSapho
CLAA154WA05A CPT 15.4 1280×800
LP154WX4-TLCB LG Display 15.4 1280×800
N154I2-L01 Innolux 15.4 1280×800
N154I2-L02 Innolux 15.4 1280×800
N154I2-L05 Innolux 15.4 1280×800
N154I3-L03 Innolux 15.4 1280×800
N154I4-L03 Innolux 15.4 1280×800
N154I4-L04 Innolux 15.4 1280×800
N154I5-L02 Innolux 15.4 1280×800
N154I6-L03 Innolux 15.4 1280×800
