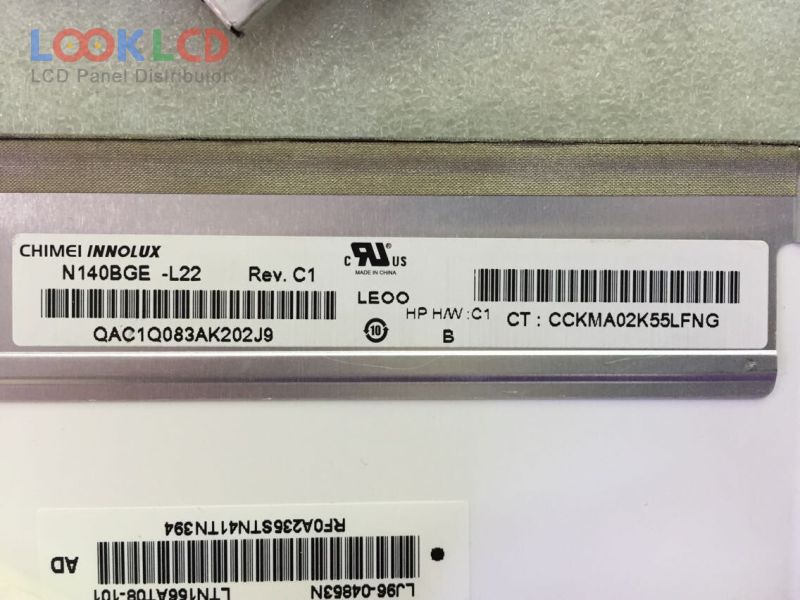

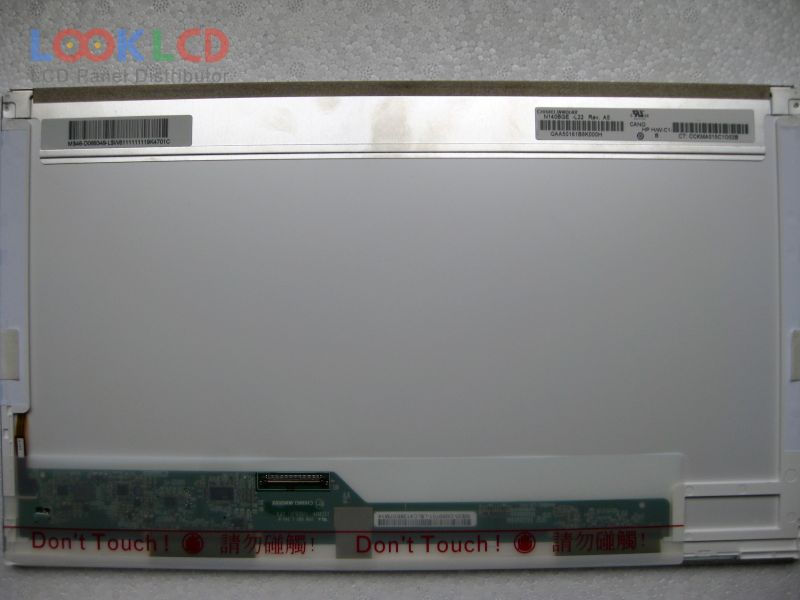

Inombolo yendawo | N140BGE-L22 |
Uphawu | Innolux |
Ubungakanani | 14.0 |
Isicelo | NBPC |
Isigqibo | 1366×768 |
Ukuqamba | LCM |
Ukuqaqamba | 200 |
CR | 650:1 |
Imibala | 262K |
Isibane ngasemva | WLED |
Ujongano | LVDS |
uphawu lwephaneli | CHIMEI INNOLUX |
imodeli yephaneli | N140BGE-L22 30 Compatible model |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 14.0 inch |
isisombululo | 1366(RGB)×768 , WXGA |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 309.399×173.952 mm |
ulwandlalo | 323.5×192×5.2 mm |
isitayile semilo | Wedge (PCBA Bent, Depth ≥5.2mm) |
umphezulu | Glare (Haze 0%), Hard coating (3H) |
ukuqaqamba | 200 cd/m² (Typ.) |
umlinganiselo wokuchasana | 650:1 (Typ.) |
bonisa imibala | 262K (6-bit), CIE193145% |
ixesha lokuphendula | 4/6 (Typ.)(Tr/Td) |
i-engile yokujonga | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | WLEDEmbedded (LED Driver) |
ujongano lomqondiso | LVDS (1 ch, 6-bit), 40 pins |
igalelo lombane | 3.3V (Typ.) |
isicelo | NBPC |
