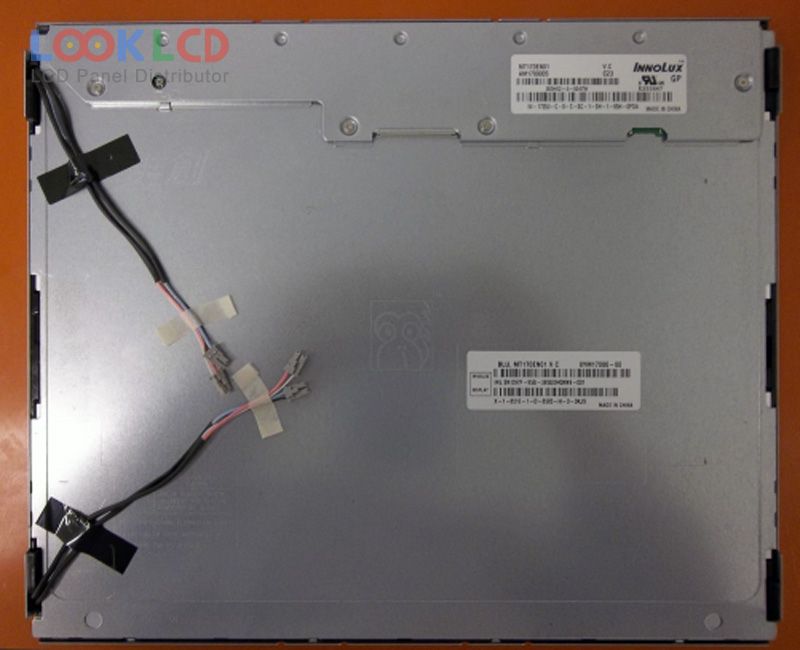

MT170EN01 V.C

MT170EN01 V.C
MT170EN01 V.C thumb
Uphawu
Innolux
Ubungakanani
17.0
Isicelo
DMPC
Isigqibo
1280×1024
Ukuqamba
LCM
Ukuqaqamba
300
CR
1000:1
Imibala
16.7M
Isibane ngasemva
CCFL
Ujongano
LVDS
In Stock
60
Iinkcukacha

Inombolo yendawo MT170EN01 V.C
UphawuInnolux
Ubungakanani17.0
IsiceloDMPC
Isigqibo1280×1024
UkuqambaLCM
Ukuqaqamba300
CR1000:1
Imibala16.7M
Isibane ngasemvaCCFL
UjonganoLVDS
uphawu lwephaneliINNOLUX
imodeli yephaneliMT170EN01 V.C
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli17.0 inch
isisombululo1280(RGB)×1024 , SXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo337.92×270.336 mm
ulwandlalo358.5×296.5×16.5 mm
umphezuluAntiglare (Haze 25%), Hard coating (3H)
ukuqaqamba300 cd/m² (Typ.)
umlinganiselo wokuchasana1000:1 (Typ.)
bonisa imibala16.7M (6-bit + Hi-FRC), CIE193172%
ixesha lokuphendula1/4 (Typ.)(Tr/Td)
i-engile yokujonga80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane4 pcsCCFLWithout Driver
ujongano lomqondisoLVDS (2 ch, 8-bit), 30 pins
igalelo lombane5.0V (Typ.)
isiceloDMPC
