Samsung LTM220M1-L02(Glare) idatadata, iinkcukacha, izitokhwe, usetyenziso www.looklcd-xh.com
LookLCD LookLCD

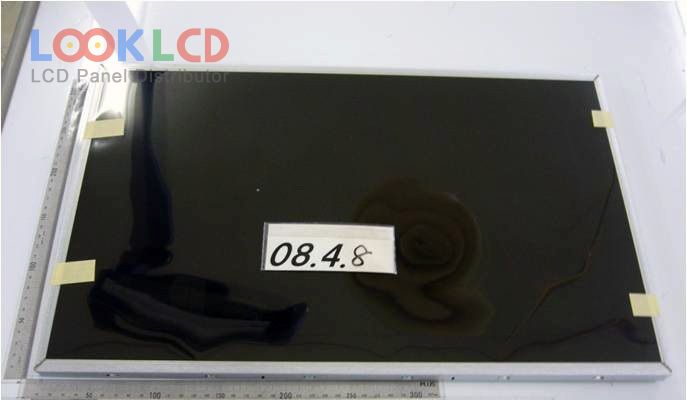

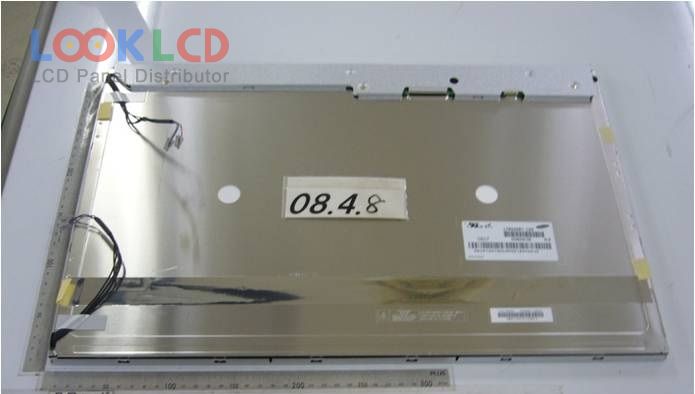

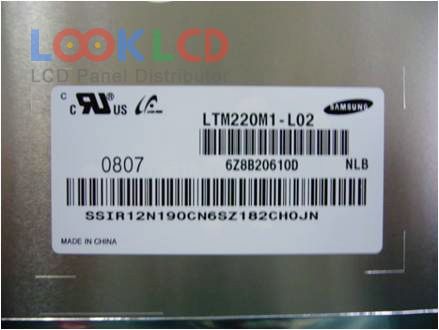

LTM220M1-L02(Glare)

LTM220M1-L02(Glare)
LTM220M1-L02(Glare)
LTM220M1-L02(Glare)
LTM220M1-L02(Glare) thumb LTM220M1-L02(Glare) thumb LTM220M1-L02(Glare) thumb
Uphawu
Samsung
Ubungakanani
22.0
Isicelo
DMPC
Isigqibo
1680×1050
Ukuqamba
LCM
Ukuqaqamba
400
CR
1000:1
Imibala
16.7M
Isibane ngasemva
CCFL
Ujongano
LVDS
In Stock
17908
Iinkcukacha

Inombolo yendawo LTM220M1-L02(Glare)
UphawuSamsung
Ubungakanani22.0
IsiceloDMPC
Isigqibo1680×1050
UkuqambaLCM
Ukuqaqamba400
CR1000:1
Imibala16.7M
Isibane ngasemvaCCFL
UjonganoLVDS
uphawu lwephaneliSAMSUNG
imodeli yephaneliLTM220M1-L02(Glare)
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli22.0 inch
isisombululo1680(RGB)×1050 , WSXGA+
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo473.76×296.1 mm
ulwandlalo493.7×320.1 mm
umphezuluGlare (Haze 0%), Hard coating (2H), Antireflection
ukuqaqamba400 cd/m² (Typ.)
umlinganiselo wokuchasana1000:1 (Typ.)
bonisa imibala16.7M , CIE193172%
ixesha lokuphendula5 (Typ.)(Tr+Td)
i-engile yokujonga80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane4 pcsCCFLWithout Driver
ujongano lomqondisoLVDS (2 ch, 8-bit), 30 pins
igalelo lombane5.0V (Typ.)
isiceloDMPC
