Samsung LTM170EU-L01 idatadata, iinkcukacha, izitokhwe, usetyenziso www.looklcd-xh.com
LookLCD LookLCD

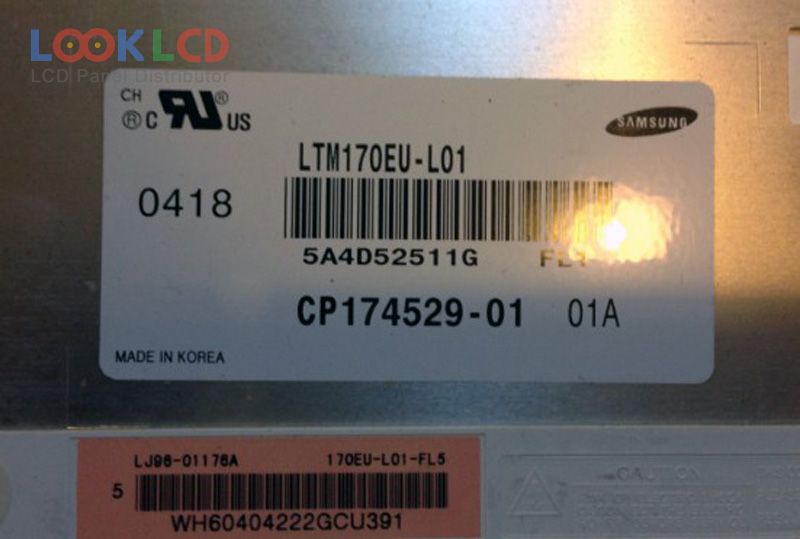

LTM170EU-L01

LTM170EU-L01
LTM170EU-L01 thumb
Uphawu
Samsung
Ubungakanani
17.0
Isicelo
DMPC
Isigqibo
1280×1024
Ukuqamba
LCM
Ukuqaqamba
270
CR
350:1
Imibala
16.2M
Isibane ngasemva
CCFL
Ujongano
LVDS
In Stock
19886
Iinkcukacha

Inombolo yendawo LTM170EU-L01
UphawuSamsung
Ubungakanani17.0
IsiceloDMPC
Isigqibo1280×1024
UkuqambaLCM
Ukuqaqamba270
CR350:1
Imibala16.2M
Isibane ngasemvaCCFL
UjonganoLVDS
uphawu lwephaneliSAMSUNG
imodeli yephaneliLTM170EU-L01
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli17.0 inch
isisombululo1280(RGB)×1024 , SXGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo337.92×270.336 mm
ulwandlalo358.5×296.5×18.5 mm
umphezuluAntiglare (Haze 25%), Hard coating (3H)
ukuqaqamba270 cd/m² (Typ.)
umlinganiselo wokuchasana350:1 (Typ.)
bonisa imibala16.2M (6-bit + FRC), CIE193172%
ixesha lokuphendula5/20 (Typ.)(Tr/Td)
i-engile yokujonga70/70/60/60 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibane4 pcsCCFLWithout Driver
ujongano lomqondisoLVDS (2 ch, 8-bit), 30 pins
igalelo lombane5.0V (Typ.)
isiceloDMPC
Umzekelo woSapho
LTM170E6-L04 Samsung 17.0 1280×1024
LTM170E8-L01 Samsung 17.0 1280×1024
LTM170E8-L02 Samsung 17.0 1280×1024
LTM170E8-L21 Samsung 17.0 1280×1024
LTM170ET01 Samsung 17.0 1280×1024
LTM170EU-A01 Samsung 17.0 1280×1024
LTM170EU-L21 Samsung 17.0 1280×1024
LTM170EU-L31 Samsung 17.0 1280×1024
LTM170EX-L31 Samsung 17.0 1280×1024
LTM170W1-L01 Samsung 17.0 1280×768
