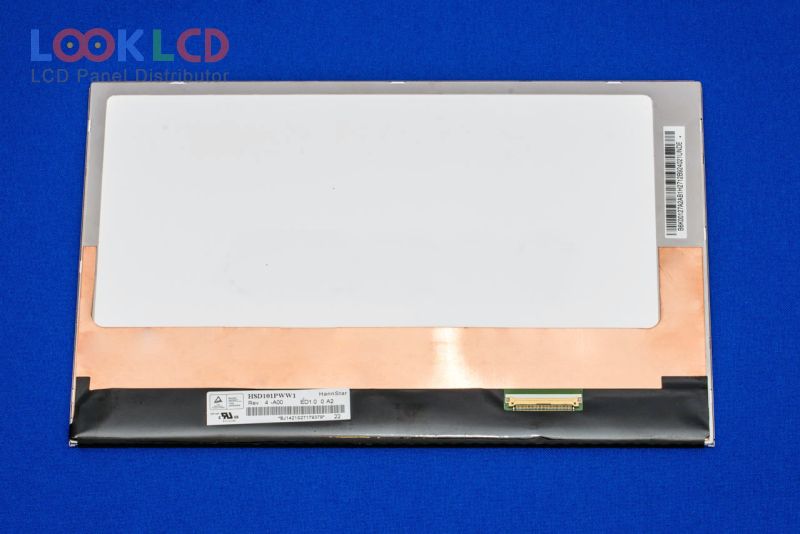

HSD101PWW1-A00 Rev.4

HSD101PWW1-A00 Rev.4
HSD101PWW1-A00 Rev.4 thumb
Uphawu
HannStar
Ubungakanani
10.1
Isicelo
PAD
Isigqibo
1280×800
Ukuqamba
LCM
Ukuqaqamba
350
CR
800:1
Imibala
262K
Isibane ngasemva
WLED
Ujongano
LVDS
In Stock
2500
Iinkcukacha

Inombolo yendawo HSD101PWW1-A00 Rev.4
UphawuHannStar
Ubungakanani10.1
IsiceloPAD
Isigqibo1280×800
UkuqambaLCM
Ukuqaqamba350
CR800:1
Imibala262K
Isibane ngasemvaWLED
UjonganoLVDS
uphawu lwephaneliHannStar
imodeli yephaneliHSD101PWW1-A00 Rev.4
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli10.1 inch
isisombululo1280(RGB)×800 , WXGA
imowudi yokubonisaHS-IPS, Normally Black, Transmissive
indawo esebenzayo216.96×135.6 mm
ulwandlalo229.46×149.2×5.2 mm
umphezuluGlare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
ukuqaqamba350 cd/m² (Typ.)
umlinganiselo wokuchasana800:1 (Typ.)
bonisa imibala262K (6-bit), CIE193145%
ixesha lokuphendula25 (Typ.)(Tr+Td)
i-engile yokujonga89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibaneWLEDEmbedded (LED Driver)
ujongano lomqondisoLVDS (1 ch, 6-bit), 40 pins
igalelo lombane3.3V (Typ.)
isiceloPAD
