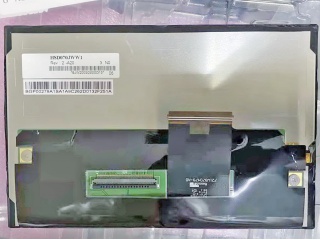

| Inombolo yendawo | HSD070JWW1-A20 |
| Uphawu | HannStar |
| Ubungakanani | 7.0 |
| Isicelo | Automotive Display |
| Isigqibo | 1280×768 |
| Ukuqamba | a-Si TFT-LCD , LCM |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | WLED |
| Ujongano | LVDS |
| uphawu lwephaneli | HannStar |
| ubungakanani bephaneli | 7.0" |
| isisombululo | 1280(RGB)×768, WXGA, 213PPI |
| indawo yokubonisa | 152.448(W)×91.4688(H) mm |
| ukuqaqamba | - |
| i-engile yokujonga | - |
| eyona mbono kwi | Symmetry |
| bonisa imibala | 16.7M |
| rhoqo | 60Hz |
| Ubunzima bephaneli | - |
| ujongano lomqondiso | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| imodeli yephaneli | HSD070JWW1-A20 |
| uhlobo lwephaneli | a-Si TFT-LCD , LCM |
| ifomathi ye-pixel | RGB Vertical Stripe |
| ukuvulwa kwe-bezel | - |
| umlinganiselo wokuchasana | 1000:1 (Min.) (TM) |
| imowudi yokubonisa | IPS Pro, Normally Black, Transmissive |
| ixesha lokuphendula | 25 (Max.)(Tr+Td) |
| uhlobo lwesibane | WLED |
| isikrini esibanjwayo | - |
| isicelo | Automotive Display |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| LQ7BW566AH | SHARP | 7.0 | 480×234 |
| LTA070B511F | TOSHIBA | 7.0 | 800×480 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
