HGS128647-Y-EH-LV

HGS128647-Y-EH-LV

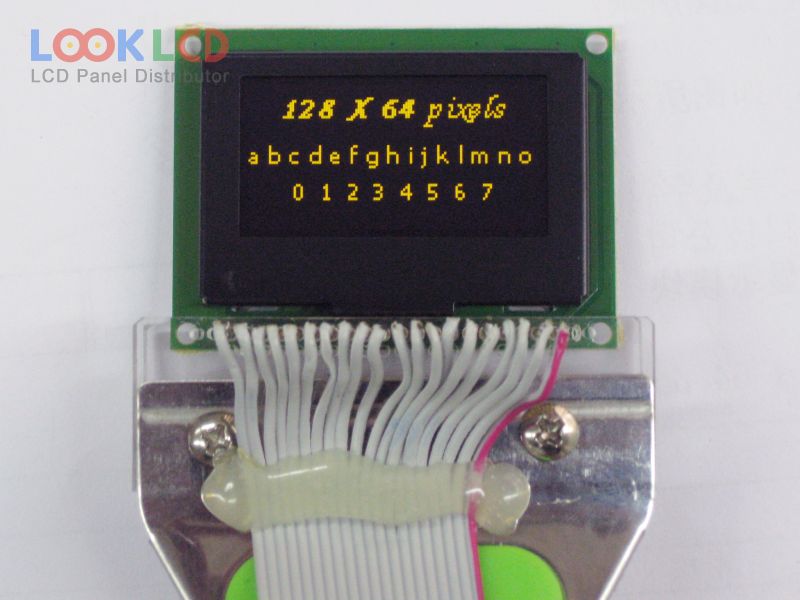

HGS128647-Y-EH-LV thumb
Uphawu
Other
Ubungakanani
1.54
Isicelo
IA
Isigqibo
128×64
Ukuqamba
OLED
Ukuqaqamba
150
CR
2000:1
Imibala
Mono(Yellow)
Isibane ngasemva
self
Ujongano
CPU/SPI/I²C
In Stock
13674
Iinkcukacha

Inombolo yendawo HGS128647-Y-EH-LV
UphawuOther
Ubungakanani1.54
IsiceloIA
Isigqibo128×64
UkuqambaOLED
Ukuqaqamba150
CR2000:1
ImibalaMono(Yellow)
Isibane ngasemvaself
UjonganoCPU/SPI/I²C
uphawu lwephaneliTSINGTEK
imodeli yephaneliHGS128647-Y-EH-LV
uhlobo lwephaneli PM-OLED , OLED
ubungakanani bephaneli1.54 inch
isisombululo128×64
indawo esebenzayo35.056×17.52 mm
ulwandlalo54×39.5×8.5 mm
umphezulu
ukuqaqamba150 cd/m² (Typ.)
umlinganiselo wokuchasana2000 : 1 (Min.)
bonisa imibalaMono(Yellow)
i-engile yokujonga80/80/80/80 (Min.)(L/R/U/D)
umqhubi icBuilt-in SSD1305
ujongano lomqondiso8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
igalelo lombane3.3V (Typ.)
rohs:
isiceloIA
