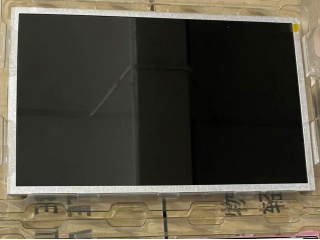

| Inombolo yendawo | EV121WXM-N12 |
| Uphawu | BOE |
| Ubungakanani | 12.1 |
| Isicelo | Medical Imaging |
| Isigqibo | 1280×800 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 1200:1 |
| Imibala | 262K/16.7M |
| Isibane ngasemva | WLED |
| Ujongano | LVDS |
| uphawu | BOE |
| imodeli | EV121WXM-N12 |
| ubungakanani bediagonal | 12.1 inch |
| uhlobo | a-Si TFT-LCD, LCM |
| ifomathi ye-pixel | 1280(RGB)×800 [WXGA] 124PPI |
| uqwalaselo | RGB Vertical Stripe |
| indawo esebenzayo | 261.12(H)×163.2(V) mm |
| ulwandlalo mfiliba. | 277.7(H)×180.6(V) ×9.2(D) mm |
| indawo ye-bezel | 264.12(H)×166.2(V) mm |
| unyango | Antiglare (Haze 25%) |
| ukukhanya | 500 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1200:1 (Typ.) (TM) |
| Jonga indlela | Symmetry |
| ixesha lokuphendula | 30 (Typ.)(Tr+Td) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| indlela yokusebenza | ADS, Normally Black, Transmissive |
| umbala inkxaso | 262K/16.7M 100% sRGB |
| umthombo wokukhanya | WLED [12S4P] , 50K hours , With LED Driver |
| ubunzima | TBD |
| yenzelwe | Medical Imaging |
| umgangatho wefreyimu | 60Hz |
| indawo yokuthintela | Without |
| uhlobo lojongano | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| ukunikezwa Amandla | 3.3V (Typ.) |
| okusingqongileyo | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA121SP01 | Mitsubishi | 12.1 | 800×600 |
| AA121TD01-DE3 | Mitsubishi | 12.1 | 1280×800 |
| B121EW07 V1 | AUO | 12.1 | 1280×800 |
| B121EW08 V0 | AUO | 12.1 | 1280×800 |
| B121EW09 V0 | AUO | 12.1 | 1280×800 |
| FLC31SVC6S-17 | Fujitsu | 12.1 | 800×600 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LTD121KM1K | TOSHIBA | 12.1 | 1400×1050 |
| LTM12C318S | TOSHIBA | 12.1 | 1024×768 |
