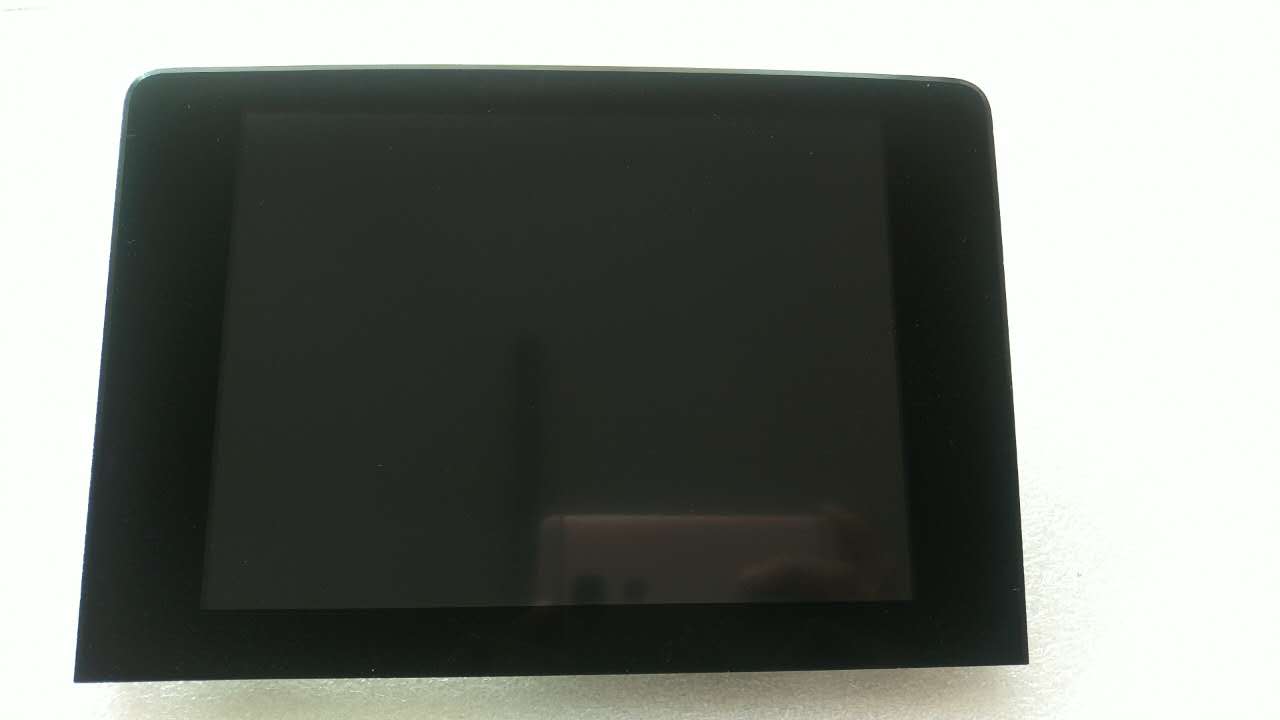

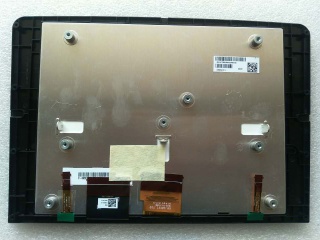

| Inombolo yendawo | C084SAT01.1 |
| Uphawu | AUO |
| Ubungakanani | 8.4 |
| Isicelo | Automotive Display |
| Isigqibo | 800×600 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | WLED |
| Ujongano | |
| umenzi | AUO |
| ubungakanani besikrini | 8.4 inch |
| inombolo pixel | 800×600(RGB) (SVGA) 118PPI |
| indawo esebenzayo(mm) | 170.88 × 128.16 (H×V) |
| ukukhanya | - |
| i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10) |
| umbono omhle kwi | Symmetry |
| ubunzulu bombala | 16.7M |
| ubunzima | - |
| izinga lokuhlaziya | 60Hz |
| max. amanqaku | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 90 °C |

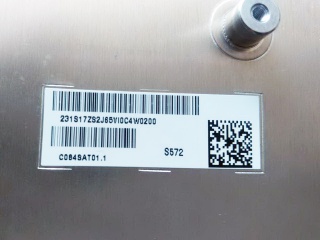

| igama lemodeli | C084SAT01.1 |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| ilungiselelo | RGB Horizontal Stripe |
| Ulwandlalo(mm) | - |
| umlinganiselo wokuchasana | 1000 : 1 (Typ.) (TM) |
| impendulo | 15/20 (Typ.)(Tr/Td) ms |
| imo yomsebenzi | AHVA, Normally Black, Transmissive |
| isibane esingasemva | WLED , No Driver |
| esetyenziselwa | Automotive Display |
| isikrini esibanjwayo | Without |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA084XA03 | Mitsubishi | 8.4 | 1024×768 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| M084GNS1 R1 | IVO | 8.4 | 800×600 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
