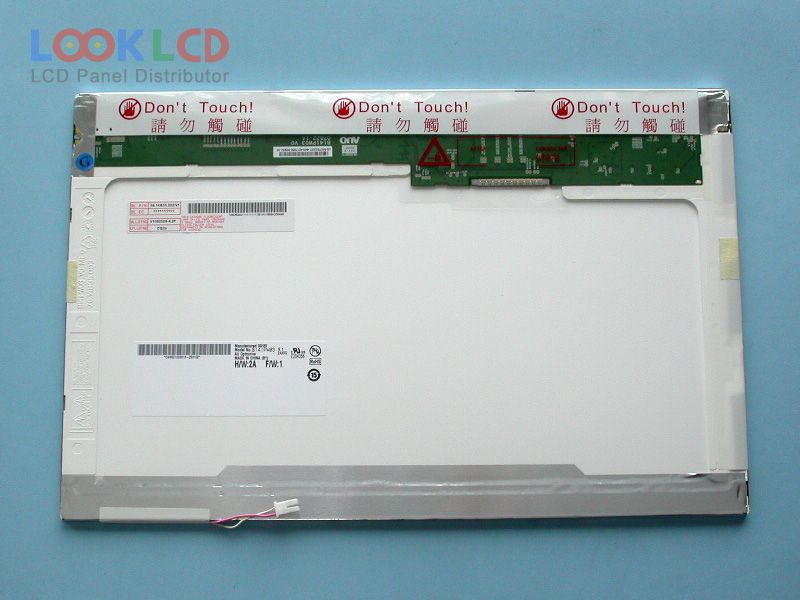

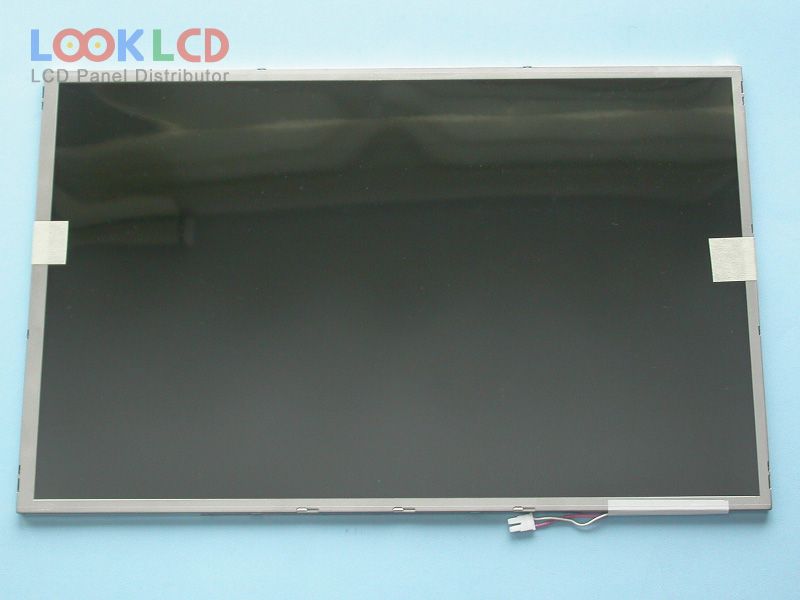

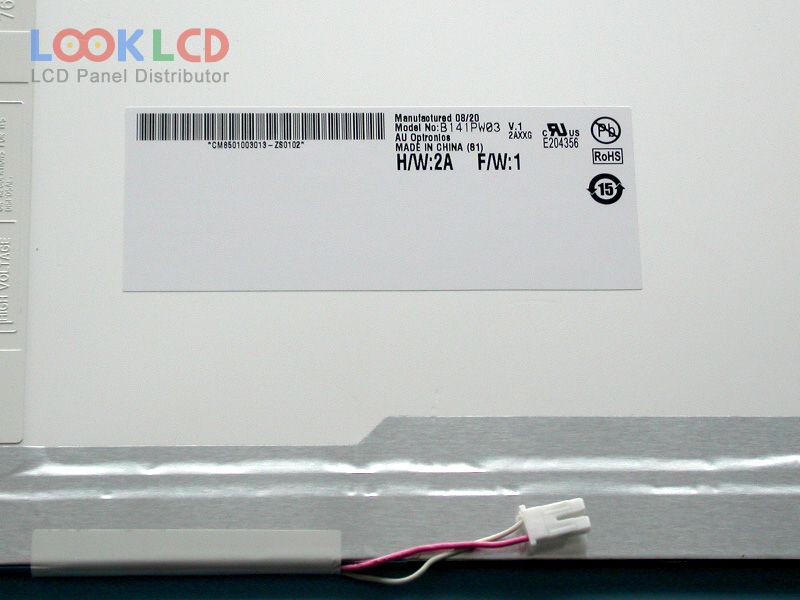

Inombolo yendawo | B141PW03 V1 |
Uphawu | AUO |
Ubungakanani | 14.1 |
Isicelo | NBPC |
Isigqibo | 1440×900 |
Ukuqamba | LCM |
Ukuqaqamba | 200 |
CR | 400:1 |
Imibala | 262K |
Isibane ngasemva | CCFL |
Ujongano | LVDS |
uphawu lwephaneli | AUO |
imodeli yephaneli | B141PW03 V1 3 Compatible model |
uhlobo lwephaneli | a-Si TFT-LCD , LCM |
ubungakanani bephaneli | 14.1 inch |
isisombululo | 1440(RGB)×900 , WXGA+ |
imowudi yokubonisa | TN, Normally White, Transmissive |
indawo esebenzayo | 303.48×189.675 mm |
ulwandlalo | 319.5×205.5×5.5 mm |
isitayile semilo | Wedge (PCBA Bent, Depth ≥5.2mm) |
umphezulu | Glare (Haze 0%), Hard coating (3H) |
ukuqaqamba | 200 cd/m² (Typ.) |
umlinganiselo wokuchasana | 400:1 (Typ.) |
bonisa imibala | 262K (6-bit), CIE193145% |
ixesha lokuphendula | 8 (Typ.)(Tr+Td) |
i-engile yokujonga | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
rhoqo | 60Hz |
uhlobo lwesibane | 1 pcsCCFLWithout Driver |
ujongano lomqondiso | LVDS (2 ch, 6-bit), 30 pins |
igalelo lombane | 3.3V (Typ.) |
isicelo | NBPC |
