AUO B101UAN01.7 HW0A idatadata, iinkcukacha, izitokhwe, usetyenziso www.looklcd-xh.com
LookLCD LookLCD

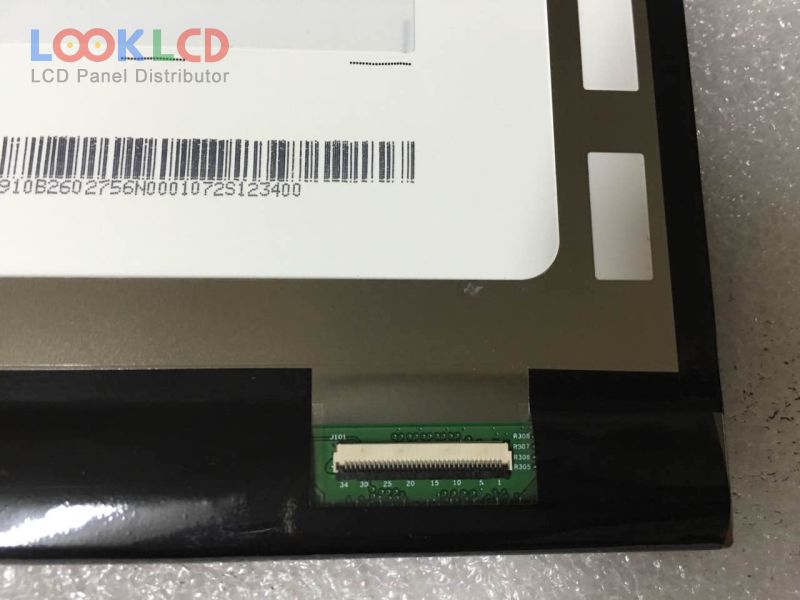

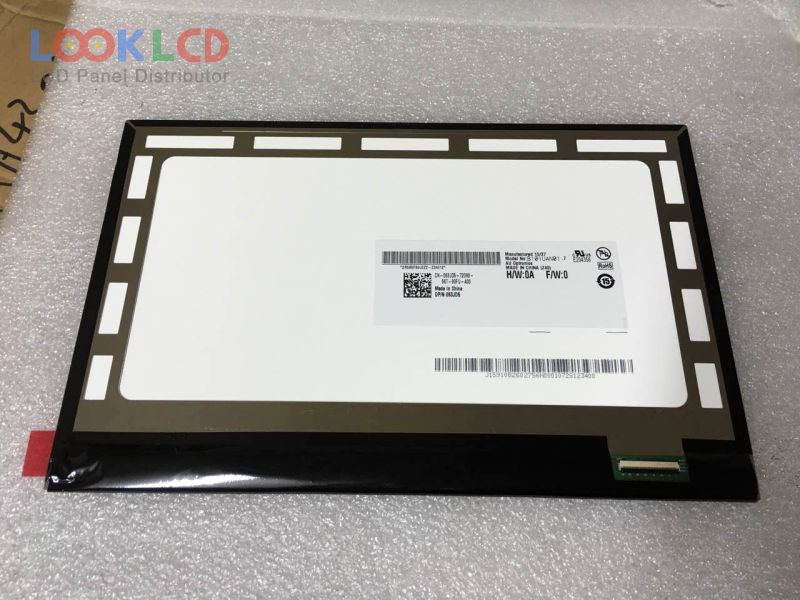

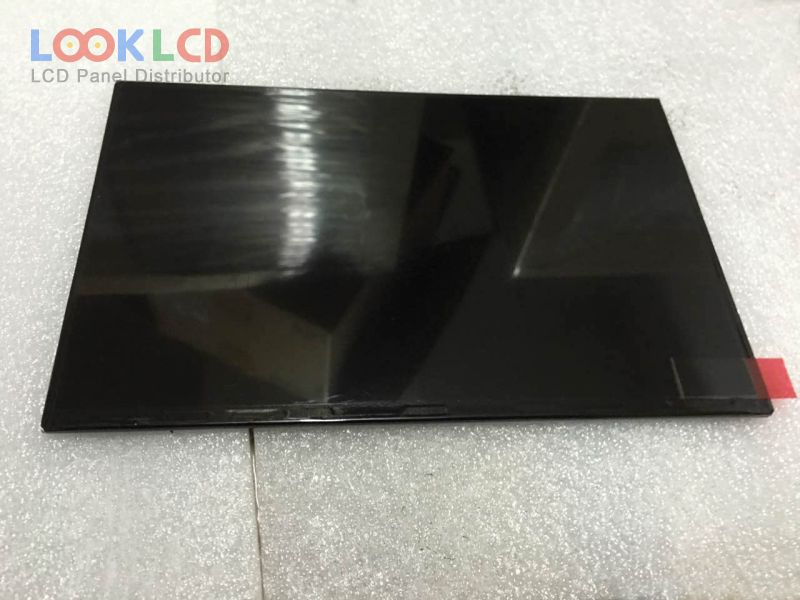

B101UAN01.7 HW0A

B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb
Uphawu
AUO
Ubungakanani
10.1
Isicelo
PAD
Isigqibo
1920×1200
Ukuqamba
LCM
Ukuqaqamba
400
CR
800:1
Imibala
16.7M
Isibane ngasemva
WLED
Ujongano
MIPI
In Stock
7648
Iinkcukacha

Inombolo yendawo B101UAN01.7 HW0A
UphawuAUO
Ubungakanani10.1
IsiceloPAD
Isigqibo1920×1200
UkuqambaLCM
Ukuqaqamba400
CR800:1
Imibala16.7M
Isibane ngasemvaWLED
UjonganoMIPI
uphawu lwephaneliAUO
imodeli yephaneliB101UAN01.7 HW0A
uhlobo lwephaneli a-Si TFT-LCD , LCM
ubungakanani bephaneli10.1 inch
isisombululo1920(RGB)×1200 , WUXGA
imowudi yokubonisaAHVA, Normally Black, Transmissive
indawo esebenzayo216.81×135.5 mm
ulwandlalo227.72×147.8×5.35 mm
umphezuluGlare (Haze 0%)
ukuqaqamba400 cd/m² (Typ.)
umlinganiselo wokuchasana800:1 (Typ.)
bonisa imibala16.7M (8-bit), CIE193150%
ixesha lokuphendula25 (Typ.)(Tr+Td)
i-engile yokujonga85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
uhlobo lwesibaneWLEDEmbedded (LED Driver)
ujongano lomqondisoMIPI (4 data lanes), 34 pins
igalelo lombane3.3V (Typ.)
isiceloPAD
Umzekelo woSapho
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW1A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
