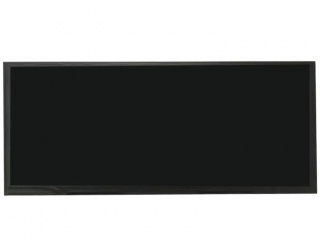

| Inombolo yendawo | AV103Z7M-N13-3850 |
| Uphawu | BOE |
| Ubungakanani | 10.3 |
| Isicelo | Automotive Display |
| Isigqibo | 1920×720 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 16.7M |
| Isibane ngasemva | 9S3P |
| Ujongano | LVDS |
| uphawu lwephaneli | BOE |
| imodeli yephaneli | AV103Z7M-N13-3850 |
| ubungakanani bephaneli | 10.3" |
| uhlobo lwephaneli | a-Si TFT-LCD, LCM |
| isisombululo | 1920(RGB)×720, 200PPI |
| ifomathi ye-pixel | RGB Vertical Stripe |
| indawo yokubonisa | 243.648(W)×91.368(H) mm |
| ukuvulwa kwe-bezel | - |
| ubungakanani bamagqabantshintshi | 256.748(W)×107.068(H) ×10.5(D) mm |
| umphezulu | - |
| ukuqaqamba | 850 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000:1 (Typ.) (TM) |
| i-engile yokujonga | 85/85/85/85 (Typ.)(CR≥10) |
| imowudi yokubonisa | HADS, Normally Black, Transmissive |
| eyona mbono kwi | Symmetry |
| ixesha lokuphendula | 25 (Typ.)(Tr+Td) |
| bonisa imibala | 16.7M 75% NTSC |
| uhlobo lwesibane | 9S3P WLED , Without Driver |
| rhoqo | 60Hz |
| isikrini esibanjwayo | Without |
| Ubunzima bephaneli | - |
| isicelo | Automotive Display |
| ujongano lomqondiso | LVDS (2 ch, 8-bit) , 50 pins Connector |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
